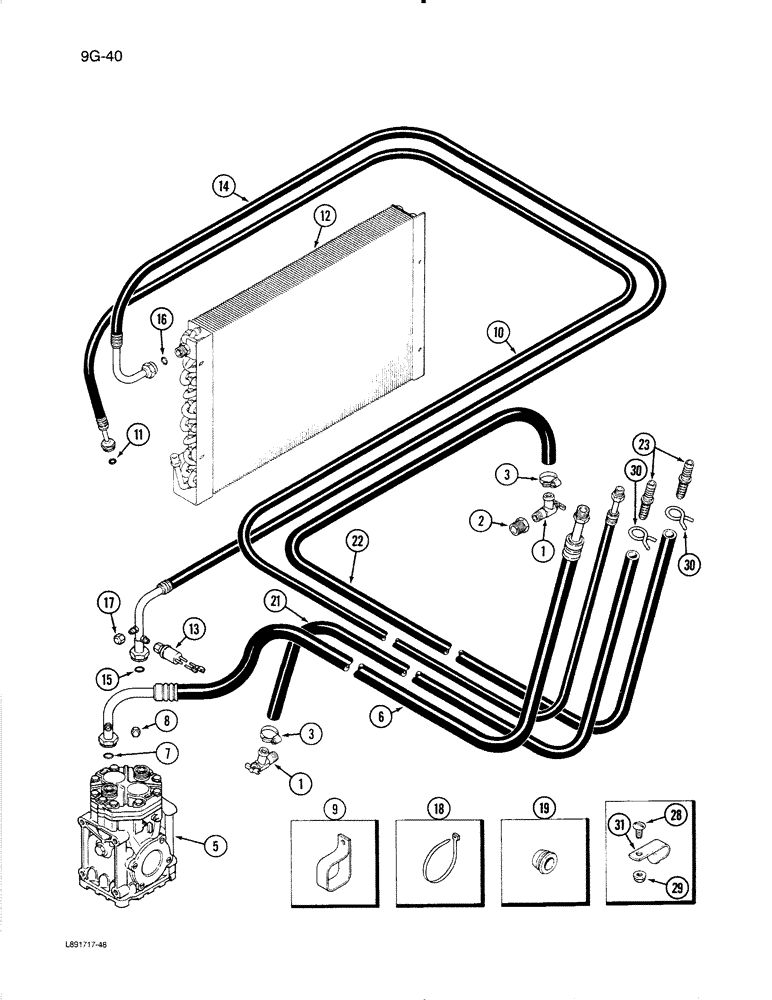

Запчасти Case IH 1670 (9G-40) - HEATER AND AIR CONDITIONING, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - heater

2шт.

2

175778H1

ADAPTER

- 1/2 to 3/8 inch

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose retaining, No. 12

2шт.

5

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning (See Figure 9G-48)

1шт.

6

1276165C1

HOSE

ASSEMBLY - compressor to cab, 201 inch, Includes: Ref. 7 and 8

1шт.

7

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - seal

1шт.

9

1301387C2

CLIP

- hose

1шт.

10

1276162C3

HOSE

ASSEMBLY - condenser to cab, Includes: Ref. 11

1шт.

11

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

12

183901C2

CONDENSER

COIL - condenser, air conditioning

1шт.

13

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

14

1276161C2

HOSE

ASSEMBLY - compressor to condenser, Includes: Ref. 15 - 17

1шт.

15

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch

1шт.

16

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/8 x 9/16 inch

1шт.

17

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - seal

2шт.

18

306132C1

CABLE TIE,14.5" L

STRAP - tie, 4 inch maximum bundle

1шт.

18

702093C1

CABLE TIE

STRAP - tie, 3 inch maximum

1шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose, 3/4 inch ID

2шт.

19

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID

2шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- hose, 1 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, red, 255 inch (Order 1255859C1, Serial Range: cut-length)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 298 inch long (Order 117724C1, Serial Range: cut-length)

1шт.

23

1301342C1

FITTING

CONNECTOR - heater hose inlet fitting

2шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

1шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

1шт.

30

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP - No. 14, Type E spring wire

2шт.

31

66498C1

CLIP

- hose

1шт.
