Запчасти Case IH 1670 (9G-34) - EVAPORATOR-HEATER CORE, AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

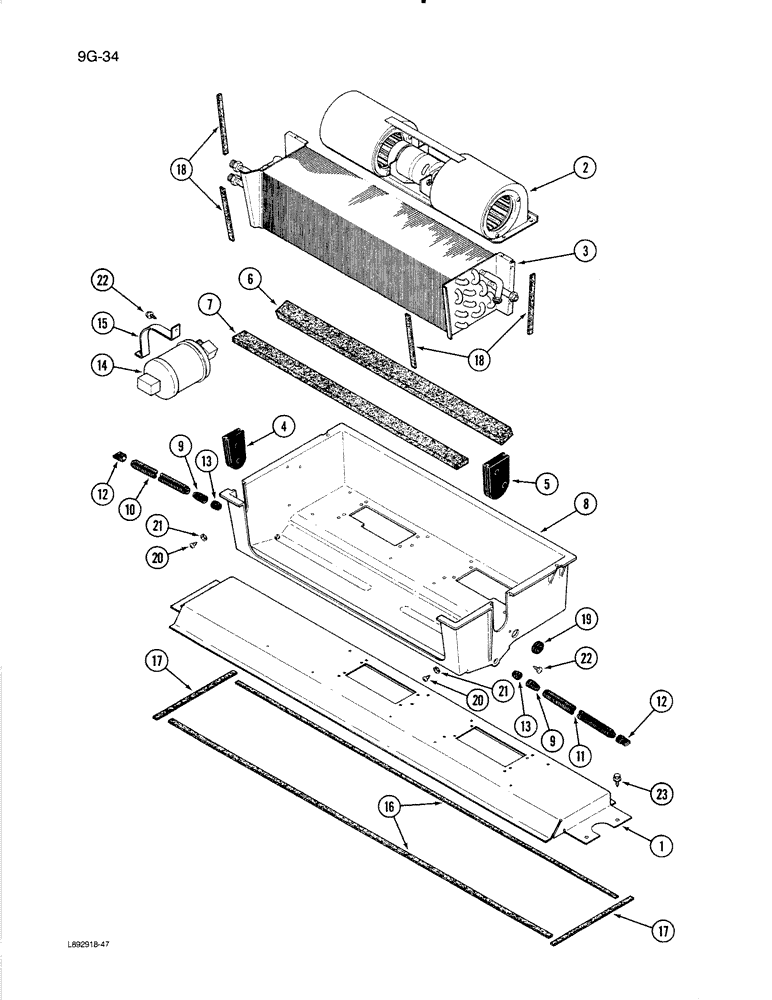

Схема запчастей Case IH 1670 - (9G-34) - EVAPORATOR-HEATER CORE, AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING
9
22
3
20
2
12
12
22
17
21
11
9
14
5
19
18
23
17
1
10
8
18
13
15
4
6
20
7
13
21
16

Артикул

Название

Примечание

Количество

1

1276238C1

SUPPORT

- mounting, blower box

1шт.

2

REF

INSTRUCTION

BLOWER ASSEMBLY - pressurizer (See Figure 9G-36)

1шт.

3

1974632C1

EVAPORATOR

CORE - evaporator and heater

1шт.

4

1250463C2

GROMMET

- evaporator tubes (Rubber)

1шт.

5

1250464C2

GROMMET

- heater tubes (Rubber)

1шт.

6

84123C1

STRIP

- core front

1шт.

7

84124C1

STRIP

- core rear

1шт.

8

135776C2

HOUSING

- core

1шт.

9

1250522C3

FITTING

FITTING - drain, Serial Range: hose-housing

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - condensate left, 90 inch (Order 198091C1, Serial Range: cut-length)

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - condensate right, 134 inch (Order 198091C1, Serial Range: cut-length)

1шт.

12

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

13

195806C1

GROMMET

- condensate hose, 3/4 inchID

2шт.

14

143469C2

RESERVOIR

RECEIVER - DRIER

1шт.

15

1250439C1

CLAMP

- receiver-drier

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - No. 10-16 x 3/4 inch

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 50 inch (Order 187874C1, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 10 inch (Order 187874C1, Serial Range: cut-length)

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - core to housing, 6-1/2 inch (Order 187874C1, Serial Range: cut-length)

1шт.

19

83931C1

GROMMET

- blower harness

1шт.

20

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - No. 10-16 x 1/2

4шт.

21

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

- flat, 11/32 x 1/2 x 1/32 inch

4шт.

22

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - No. 10-16 x 3/4 inch

10шт.

23

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, 1/4-14 x 1 inch

4шт.

Выбрано товаров: 24
