Запчасти Case IH 1670 (9G-32) - CAB ROOF (10) - CAB & AIR CONDITIONING

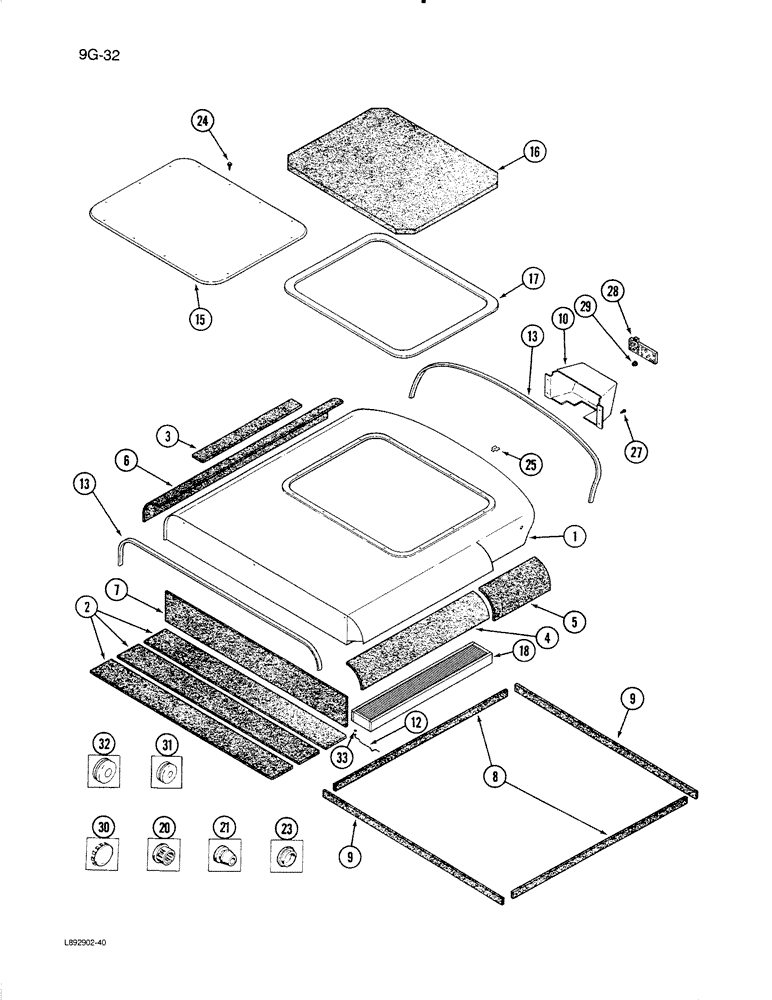

Схема запчастей Case IH 1670 - (9G-32) - CAB ROOF (10) - CAB & AIR CONDITIONING
10
13
32
24
31
30
27
29
4
25
9
20
2
28
23
13
1
9
12
18
7
3
6
5
15
30
21
17
8
16

Артикул

Название

Примечание

Количество

1

1276124C2

TOP

ROOF ASSEMBLY - cab, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

PAD - insulation top, 12 inch (Order 1327515C1, Serial Range: cut-length)

3шт.

3

NSS

NOT SOLD SEPARAT

PAD - insulation, left top, 12 inch (Order 1327515C1, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - insulation, right rear, 12 inch (Order 1327515C1, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

PAD - insulation, right front, 12 inch (Order 1327515C1, Serial Range: cut-length)

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - insulation, left side, 12 inch (Order 1327515C1, Serial Range: cut-length)

1шт.

7

NSS

NOT SOLD SEPARAT

PAD - insulation, rear, 60 inch (Order 1327515C1, Serial Range: cut-length)

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - roof sides, 54 inch (Order 182747C1, Serial Range: cut-length)

2шт.

9

NSS

NOT SOLD SEPARAT

STRIP - roof front and rear, 57 inch (Order 182747C1, Serial Range: cut-length)

2шт.

10

1281510C2

COVER

- windshield wiper motor

1шт.

12

117727C2

ROD

- filter latch

3шт.

13

NSS

NOT SOLD SEPARAT

SEAL - roof trim front and rear, 72 inch (Order 1327666C1, Serial Range: cut-length)

2шт.

15

143006C3

PANEL

- roof, access cover

1шт.

16

1276340C1

INSULATOR

PAD - insulation, access cover

1шт.

17

83872C2

SEAL

- access cover

1шт.

18

REF

INSTRUCTION

FILTER - cab (See Figure 9G-30)

1шт.

179093

HOLE PLUG BUTTON,9/32"

8шт.

20

142940C1

PLUG

- plastic, 5/8 inch diameter

5шт.

20

117730C1

PLUG

- plastic, 3/4 inch diameter

3шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- rubber diagonal cut, 1 x 1-3/8 inch

1шт.

23

406391C1

PLUG,1"

- button, 1 inch diameter

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- special, 1/4 x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

- spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- hex poly seal, 5/16 x 5/8 inch

4шт.

28

REF

INSTRUCTION

MEDALLION - Case IH logo (See Figure 9H-26)

1шт.

29

1324788C1

NUT

- self threading, 1/4 inch

2шт.

30

472429C1

PLUG

Plastic, 3/4" Diameter Hole

2шт.

31

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole

2шт.

32

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, 3/8 x 27/32 x 5/16 inch

1шт.

33

118084C1

SEALING WASHER

- rubber

3шт.

Выбрано товаров: 30
