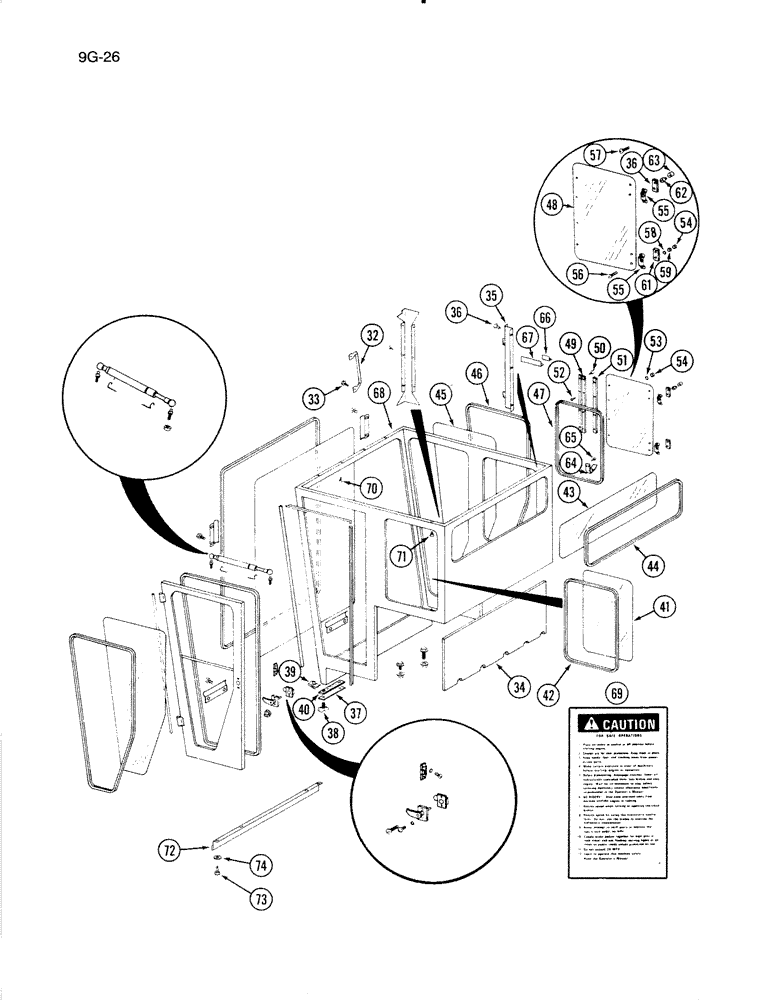

Запчасти Case IH 1670 (9G-26) - OPERATORS CAB BOTTOM, (CONT) (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

CAB ASSEMBLY - operator, continued, Includes: Ref. 32 - 74

1шт.

32

1321545C1

HANDLE

- grab

1шт.

33

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch

2шт.

34

1321286C2

PANEL

SHEET - rear acoustical

1шт.

35

1276309C1

SUPPORT

ASSEMBLY - right filler

1шт.

36

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - No. 10 x 3/8 inch

6шт.

37

1301129C1

DOOR

- clean out

1шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

- thumb, clean out door

2шт.

39

1301128C1

NUT

- thumb screw

2шт.

40

NSS

NOT SOLD SEPARAT

STRIP - clean out door seal, 9-11/16 inch (Order 1300025C1, Serial Range: cut-length)

1шт.

41

198244C1

GLASS

- left rear

1шт.

42

NSS

NOT SOLD SEPARAT

STRIP - cab left rear glass, 87 inch (Order 198131C2, Serial Range: cut-length)

1шт.

43

198247C1

GLASS

- cab rear

1шт.

44

NSS

NOT SOLD SEPARAT

STRIP - cab rear glass, 123 inch (Order 198131C2, Serial Range: cut-length)

1шт.

45

198184C1

GLASS

- cab right front

1шт.

46

NSS

NOT SOLD SEPARAT

STRIP - cab right front glass, 130 inch (Order 198131C2, Serial Range: cut-length)

1шт.

47

109594C1

SEAL

STRIP - right rear window weather

1шт.

48

1283343C1

GLASS

- right rear window

1шт.

49

1301233C1

HINGE

- right rear window

1шт.

50

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

4шт.

51

1301234C1

STRIP

SHIM - hinge, right rear window

1шт.

52

27093R1

SCREW

- No. 10 x 5/8 inch

4шт.

53

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

54

196922C1

LOCK NUT

- window lock

8шт.

55

170404C1

HANDLE

ASSEMBLY - right rear window lock

2шт.

56

159972

SCREW,Cross Pan Hd, #10 - 24 x 1 3/4"

- No. 10 x 1-3/4 inch

2шт.

57

26667R1

SCREW

- No. 10 x 3/4 inch

2шт.

58

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

59

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

61

183585C1

STRIP

SHIM - right rear window strip

2шт.

62

896274C1

BUSHING

- window retainer cushion

4шт.

63

196926C1

END FITTING

GRIP - window lock bolt cap

2шт.

64

1281761C2

SPRING

- latch, window

1шт.

65

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - No. 10-16 x 3/8 inch

2шт.

66

NSS

NOT SOLD SEPARAT

STRIP - outer, right rear window latch, 1-1/2 inch (Order 195594C1, Serial Range: cut-length)

1шт.

67

NSS

NOT SOLD SEPARAT

STRIP - inner, right rear window, 3 inch (Order 195594C1, Serial Range: cut-length)

1шт.

68

NSS

NOT SOLD SEPARAT

CAB BOTTOM - (Order 1330154C92)

1шт.

69

2753929R5

DECAL

- caution, safe operation

1шт.

70

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self tapping, 5/16 inch

10шт.

71

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self tapping, 5/16 inch

4шт.

72

1338051C1

BRACKET

- hold down, front

1шт.

73

23998R1

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Hd, 1/4" x 1/2"

4шт.

74

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

4шт.
