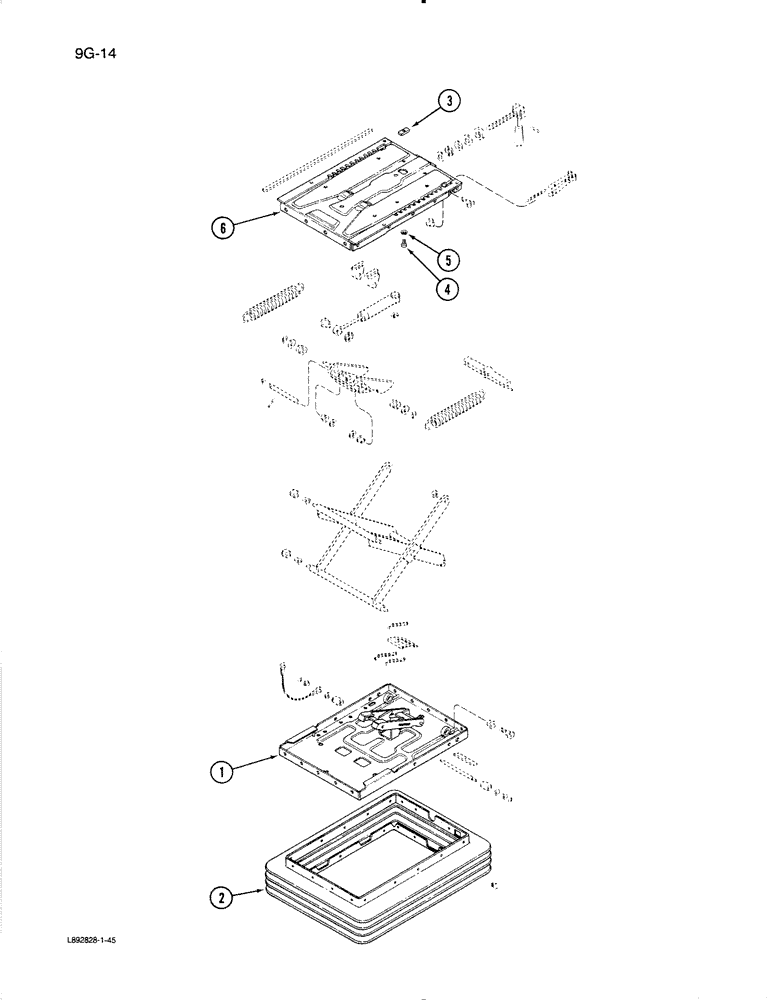

Запчасти Case IH 1670 (9G-14) - SEAT ASSEMBLY, BOSTROM (10) - CAB & AIR CONDITIONING

91789C91

SEAT

ASSEMBLY - operator, continued, Includes: Ref. 1 - 6 and service kit

1шт.

1954465C1

KIT

SERVICE KIT - suspension, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SUSPENSION - seat

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - suspension

1шт.

3

NSS

NOT SOLD SEPARAT

STOP - forward

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - stop retaining, 5 x 10 mm

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - lock, 5 mm

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDER - seat

2шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

Part of seat top service kit 1954469C1

1шт.

1954469C1

KIT

SERVICE KIT top, seat, Includes Ref. 6 and Ref. on Figure 9G-12 and 14)

1шт.

1954471C1

KIT

SERVICE KIT - miscellaneous, Includes: Ref. 6 (Includes Ref. on Figure 9G-12, 9G-14 and 9G-16)

1шт.
