Запчасти Case IH 1670 (9G-12) - SEAT ASSEMBLY, BOSTROM (10) - CAB & AIR CONDITIONING

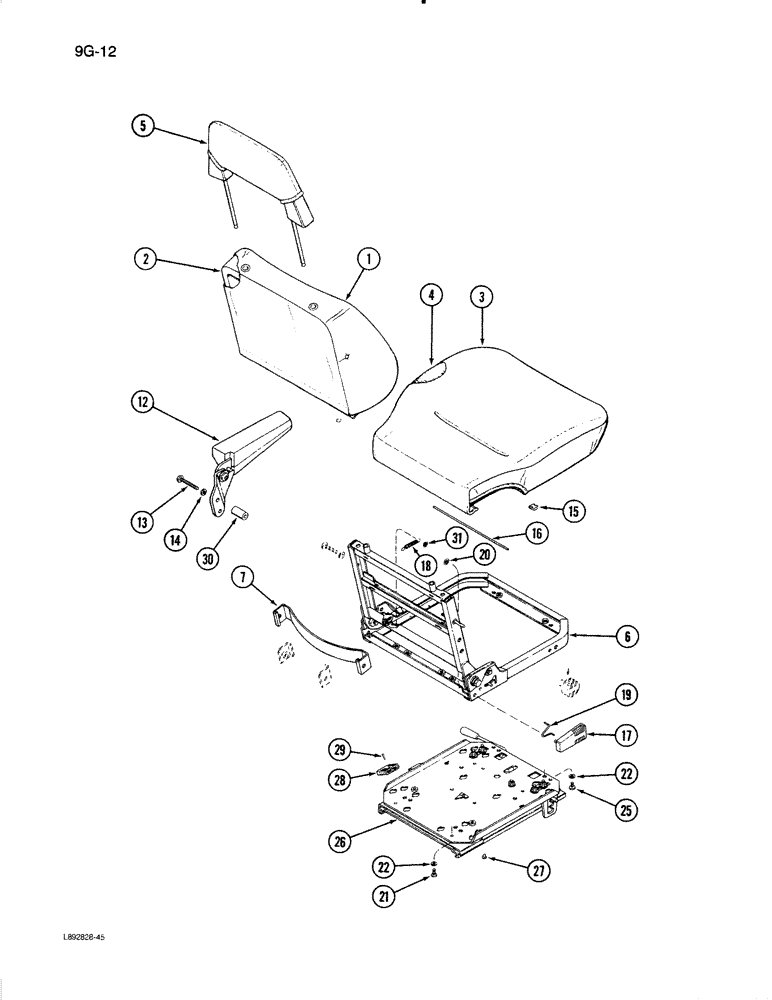

Схема запчастей Case IH 1670 - (9G-12) - SEAT ASSEMBLY, BOSTROM (10) - CAB & AIR CONDITIONING
22
13
26
29
17
7
6
16
15
5
2
19
14
25
12
31
4
1
22
18
21
27
20
30
28
3

Артикул

Название

Примечание

Количество

91789C91

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 31 and service kit

1шт.

1954464C1

KIT

SERVICE KIT - top assembly, seat

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - backrest cushion

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - backrest foam

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - seat cushion

1шт.

4

NSS

NOT SOLD SEPARAT

CUSHION - seat foam

1шт.

5

NSS

NOT SOLD SEPARAT

EXTENSION - backrest

1шт.

6

NSS

NOT SOLD SEPARAT

FRAME - seat

1шт.

7

NSS

NOT SOLD SEPARAT

SUPPORT - lumbar

1шт.

Part of seat top service kit 1954469C1

1шт.

12

NSS

NOT SOLD SEPARAT

ARMREST - seat

1шт.

Part of arm rest service kit P/N 1954466C1

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - retaining, 8 x 60 mm

2шт.

Part of arm rest service kit P/N 1954466C1

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - lock, 8 mm

2шт.

Part of arm rest service kit P/N 1954466C1

1шт.

15

NSS

NOT SOLD SEPARAT

CLIP - retaining, D type

15шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

Part of seat top service kit 1954469C1

1шт.

16

NSS

NOT SOLD SEPARAT

ROD - pouch

1шт.

17

NSS

NOT SOLD SEPARAT

HANDLE - recline

1шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

Part of seat top service kit 1954469C1

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - tension

2шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

Part of seat top service kit 1954469C1

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - adjusting

1шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

Part of seat top service kit 1954469C1

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

Part of seat top service kit 1954469C1

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - retaining, 6 x 20 mm

2шт.

Part of seat top service kit 1954469C1

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm

4шт.

Part of seat top service kit 1954469C1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - retaining, 6 x 16 mm

2шт.

Part of seat top service kit 1954469C1

1шт.

26

NSS

NOT SOLD SEPARAT

SLIDER ASSEMBLY - seat

1шт.

Part of seat top service kit 1954469C1

1шт.

27

NSS

NOT SOLD SEPARAT

BUTTON - slider

2шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

Part of seat top service kit 1954469C1

1шт.

28

NSS

NOT SOLD SEPARAT

HANDLE - slider

1шт.

Part of seat top service kit 1954469C1

1шт.

29

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

Part of seat top service kit 1954469C1

1шт.

30

NSS

NOT SOLD SEPARAT

SPACER - armrest retaining

2шт.

Part of arm rest service kit P/N 1954466C1

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - recliner

1шт.

Part of miscellaneous service kit P/N 1954471C1

1шт.

Part of seat top service kit 1954469C1

1шт.

1954471C1

KIT

SERVICE KIT - miscellaneous, Includes: Ref. 15, 17, 18, 19, 20, 27 and 31 (Includes Ref. on Figure 9G-12,14 and 16)

1шт.

1954469C1

KIT

SERVICE KIT - top, seat (Includes: Ref. 15, 17 - 29, 31 ) (Includes Ref. on Figure 9G-12 and 14)

1шт.

1954472C1

KIT

SERVICE KIT - trim (Includes: Ref. 1, 3, 15 and 16)

1шт.

1954466C1

KIT

SERVICE KIT - arm rest, Includes: Ref. 12, 13, 14 and 30

1шт.
