Запчасти Case IH 1670 (9G-10) - OPERATORS SEAT (10) - CAB & AIR CONDITIONING

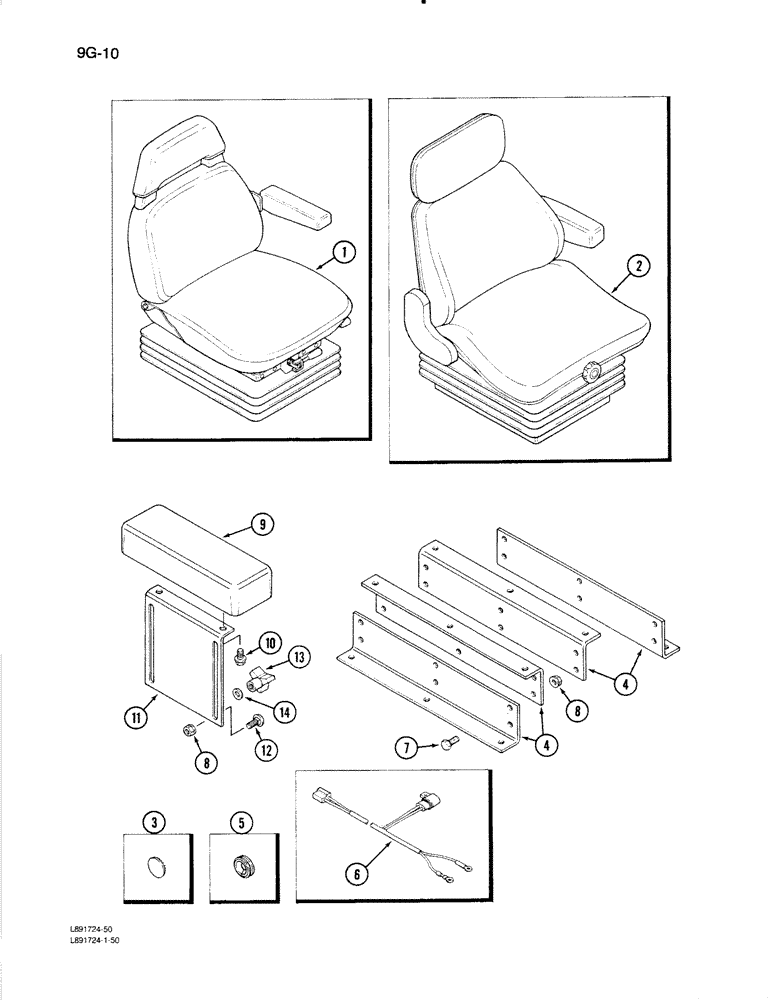

Схема запчастей Case IH 1670 - (9G-10) - OPERATORS SEAT (10) - CAB & AIR CONDITIONING
8
6
4
4
13
1
12
14
11
7
8
2
10
9
5
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SEAT - Bostrom (See Figure 9G-12 - 9G-16)

1шт.

2

REF

INSTRUCTION

SEAT - Grammer (See Figure 9G-18 - 9G-22)

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

(Bostrom) Dome, 1.000" hole, Nylon

1шт.

4

98115C1

BRACKET

- seat mounting

4шт.

5

123548H

GROMMET

- Grammer seat

1шт.

6

91832C1

HARNESS

ASSEMBLY - Grammer seat

1шт.

7

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - hex flange, 5/16 NC x 3/4 inch

14шт.

8

1330064C1

FLANGE NUT

- flange lock, 5/16 inch NC

10шт.

9

1301216C3

ARMREST

ARM REST - seat

1шт.

10

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange lock, 5/16 NC x 1/2 inch

2шт.

11

192999C1

SUPPORT

- arm rest mounting

1шт.

12

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

13

196970C1

KNOB

- arm rest

2шт.

14

25708R1

WASHER

- flat, 11/32 x 11/16 x 3/32 inch

2шт.

Выбрано товаров: 14
