(9G-04) - RIGHT CONSOLE, (CONT)

Запчасти Case IH 1670 (9G-04) - RIGHT CONSOLE, (CONT) (10) - CAB & AIR CONDITIONING

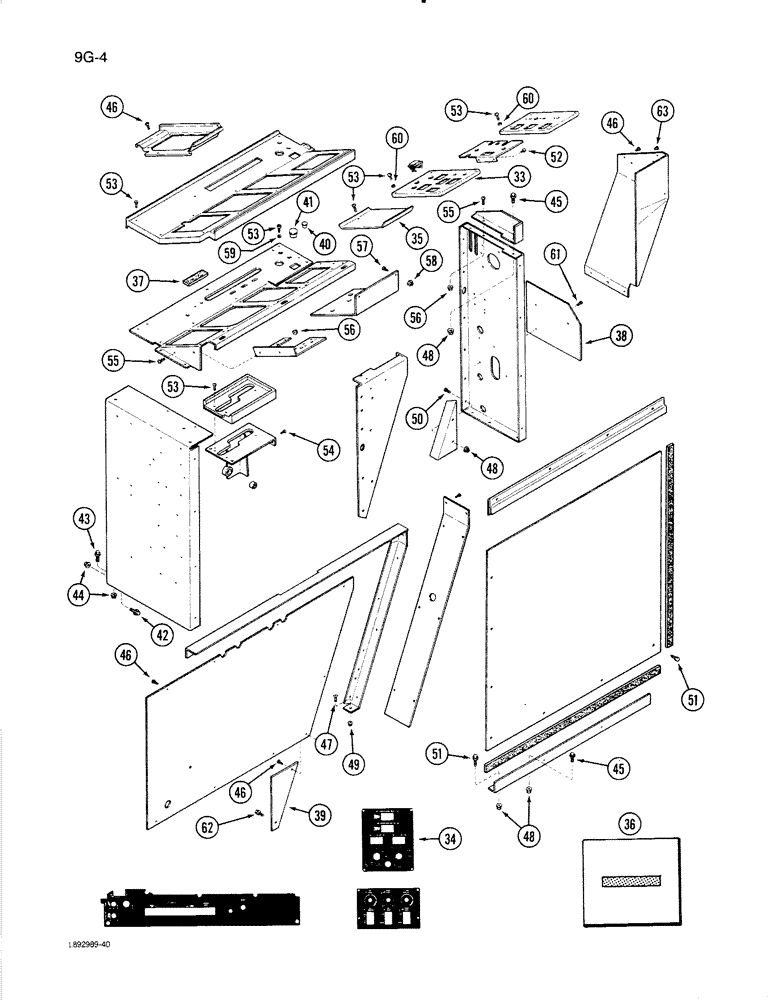

Схема запчастей Case IH 1670 - (9G-04) - RIGHT CONSOLE, (CONT) (10) - CAB & AIR CONDITIONING
48
35
53
37
50
55
55
62
36
42
46
34
41
40
60
48
51
63
60
54
52
53
61
53
47
53
45
43
44
45
49
46
56
39
51
53
58
48
59
33
46
57
46
56
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

33

1276211C1

PANEL

- machine control

1шт.

34

1280167C2

DECAL

- control panel, English

1шт.

34

1957290C1

DECAL

- control panel, French

1шт.

34

1957291C1

DECAL

- control panel, German

1шт.

34

1957292C1

DECAL

- control panel, Spanish

1шт.

35

187573C1

COVER

- fuse panel

1шт.

36

195917C1

GASKET

SEAL - bulk stock

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - right console cover, 3 inch

2шт.

38

1327985C1

PLATE

- hole cover, right front

1шт.

39

91705C1

PLATE

BAR - right console, lower

1шт.

40

353-402

PLUG,Dome, .375" hole, Nylon

- hole, 1/2 diameter

2шт.

41

183617C1

PLUG

- right console

1шт.

42

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

2шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange, 3/8 NC x 1 inch

2шт.

44

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

4шт.

45

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

11шт.

46

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head, No. 10 x 1/2 inch

34шт.

47

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

1шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

14шт.

49

1254276C1

PUSH-ON NUT

- pal fastener

1шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - truss head, 5/16 NC x 3/4 inch

2шт.

51

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

52

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - hex tapping, 1/4 x 1/2 inch

10шт.

53

27204R1

SELF-TAP SCREW

- oval head, No. 10-16 x 3/4 inch

15шт.

54

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

BOLT - pan head tapping, 1/4 x 1/2 inch

4шт.

55

937875R1

SCREW,Serr, 1/4" - 20

BOLT - truss head, 1/4 NC x 3/4 inch

3шт.

56

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

3шт.

57

26667R1

SCREW

- pan head, No. 10-24 x 3/4 inch

4шт.

58

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24

4шт.

59

24853R1

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

WASHER - flat, 11/32 x 1 x 7/64 inch

3шт.

60

1270762C1

SELF-TAP SCREW

- pan head, No. 10-16 x 3/4 inch

4шт.

61

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

BOLT - pan head, 1/4 NC x 1/2 inch

3шт.

62

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

BOLT - hex washer head, 5/16 NC x 1 inch

1шт.

63

353-403

PLUG,Dome, .437" hole, Nylon

3шт.
