Запчасти Case IH 1670 (8-98) - HYDRAULIC COUPLINGS (07) - HYDRAULICS

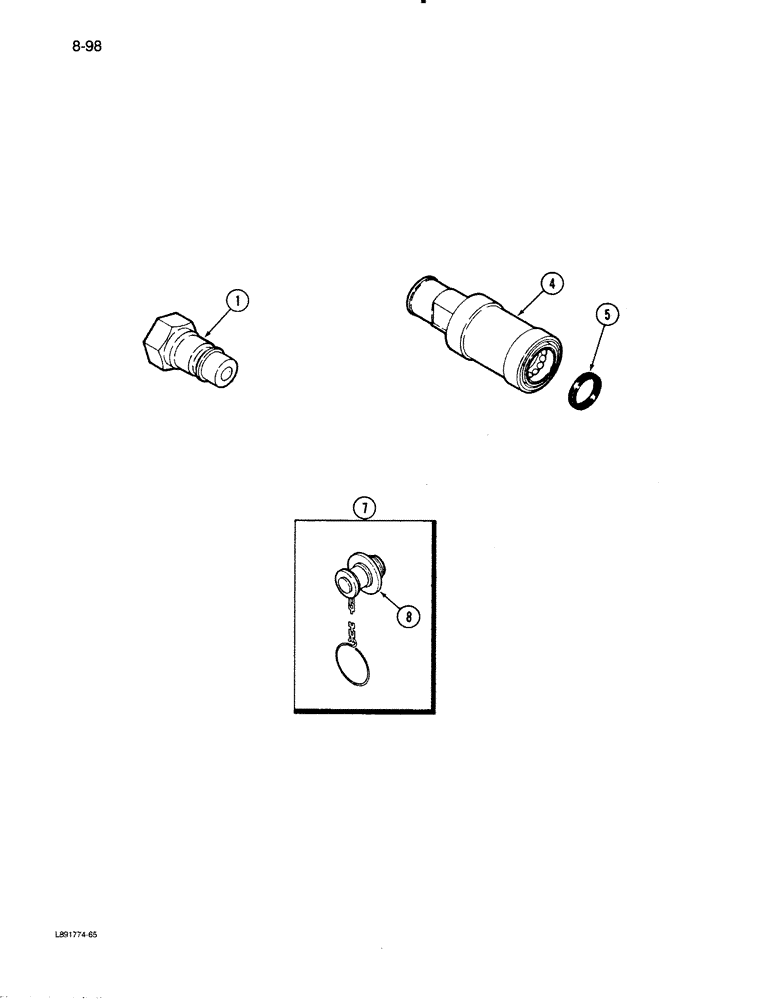

Схема запчастей Case IH 1670 - (8-98) - HYDRAULIC COUPLINGS (07) - HYDRAULICS
4
1
8
7
5

Артикул

Название

Примечание

Количество

1

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread, Includes: Ref. 5

1шт.

4

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, 7/8-14 thread, Includes: Ref. 5

1шт.

5

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING - sealing

1шт.

7

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, Includes: Ref. 8

1шт.

8

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- coupling plug

1шт.

Выбрано товаров: 5
