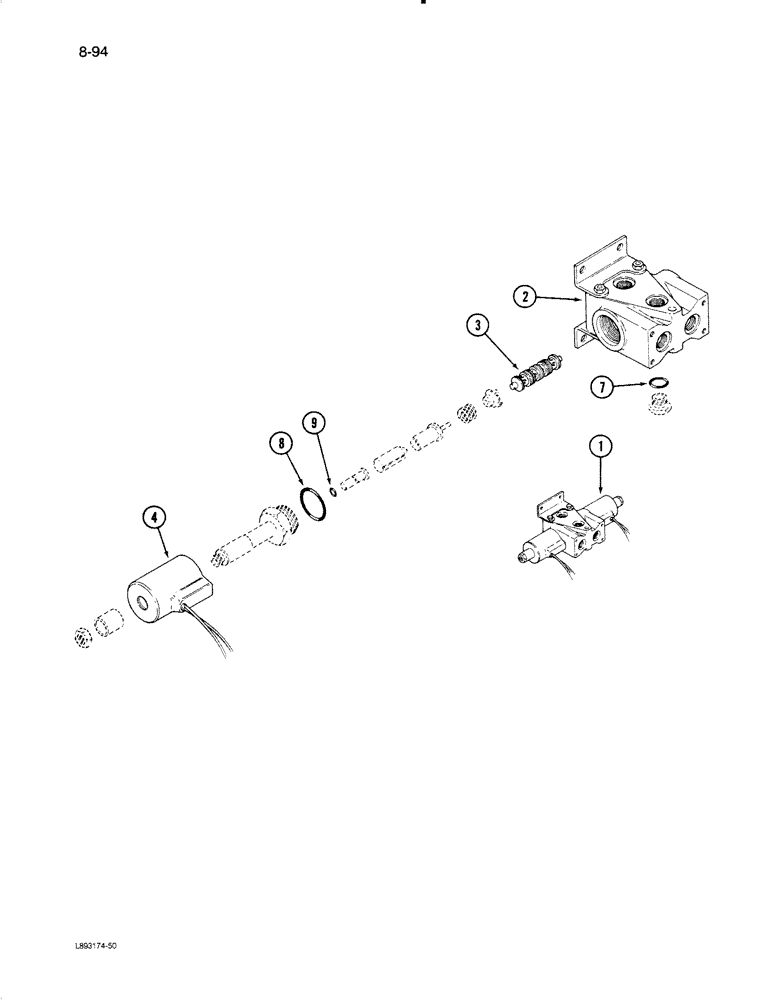

Запчасти Case IH 1670 (8-94) - LEVELING VALVE (07) - HYDRAULICS

1

1304982C93

VALVE

ASSEMBLY - leveling, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - leveling valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - leveling valve

1шт.

4

1282274C1

COIL ASSY.

COIL - leveling valve

2шт.

1282273C1

SEAL,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

KIT - valve seal repair, Includes: Ref. 7 - 9

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

2шт.

9

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

- poppet

2шт.
