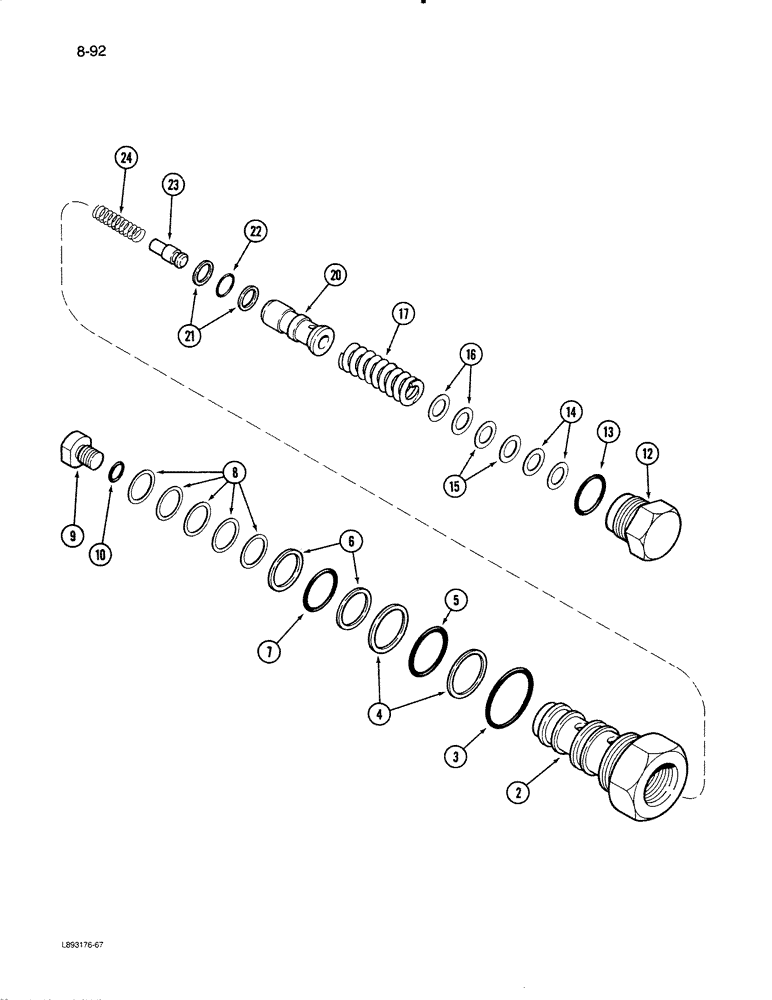

Запчасти Case IH 1670 (8-92) - CYLINDER COUNTERBALANCE VALVE (07) - HYDRAULICS

1304230C1

VALVE

- cylinder counterbalance, Includes: Ref. 2 - 24 and kit

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1304230C1)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - valve body

1шт.

Part of seal repair kit P/N 93282C1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of seal repair kit P/N 93282C1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - valve body

1шт.

Part of seal repair kit P/N 93282C1

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of seal repair kit P/N 93282C1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - valve body

1шт.

Part of seal repair kit P/N 93282C1

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - retainer

5шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - counterbalance valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - valve retainer

1шт.

Part of seal repair kit P/N 93282C1

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - counterbalance valve

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - valve cap

1шт.

Part of seal repair kit P/N 93282C1

1шт.

14

NSS

NOT SOLD SEPARAT

SHIM - spool

2шт.

14

NSS

NOT SOLD SEPARAT

SHIM - spool

2шт.

15

NSS

NOT SOLD SEPARAT

SHIM - spool

2шт.

17

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

21

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of seal repair kit P/N 93282C1

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - spool

1шт.

Part of seal repair kit P/N 93282C1

1шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

93282C1

SEAL KIT

- seal repair, Includes: Ref. 3, 4, 5, 6, 7, 10, 13, 21 and 22

1шт.
