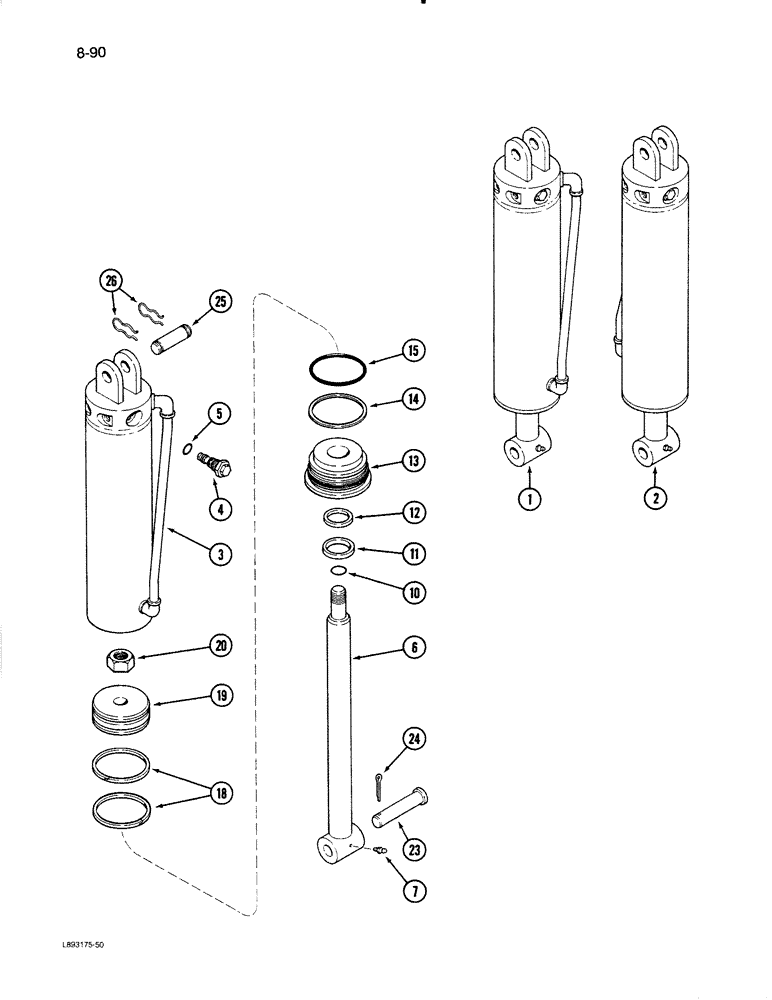

Запчасти Case IH 1670 (8-90) - LEVELING CYLINDER (07) - HYDRAULICS

1

1304218C92

CYLINDER

ASSEMBLY - leveling, left, Includes: Ref. 3 - 20

1шт.

2

1304219C92

CYLINDER

ASSEMBLY - leveling, right, Includes: Ref. 3 - 20

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - cylinder (Order assembly)

1шт.

4

REF

INSTRUCTION

VALVE - cylinder counterbalance (See Figure 8-92)

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

6

1304782C1

ROD ASSY.

ROD - cylinder piston

1шт.

7

NSS

NOT SOLD SEPARAT

FITTING - grease

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal repair kit P/N 1304224C3

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 1304224C3

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal repair kit P/N 1304224C3

1шт.

13

1304783C1

END

HEAD - cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of seal repair kit P/N 1304224C3

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of seal repair kit P/N 1304224C3

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston oil

2шт.

Part of seal repair kit P/N 1304224C3

1шт.

19

1304784C1

PISTON

- cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - piston retaining

1шт.

Part of seal repair kit P/N 1304224C3

1шт.

23

1304582C2

PIN

- cylinder rod retaining

2шт.

24

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

25

1304196C1

PIN

- cylinder retaining

2шт.

26

1304197C1

PIN

- retaining spring

4шт.

1304224C3

SEAL KIT

- seal repair, Includes: Ref. 10, 11, 12, 14, 15, 18 and 20

1шт.
