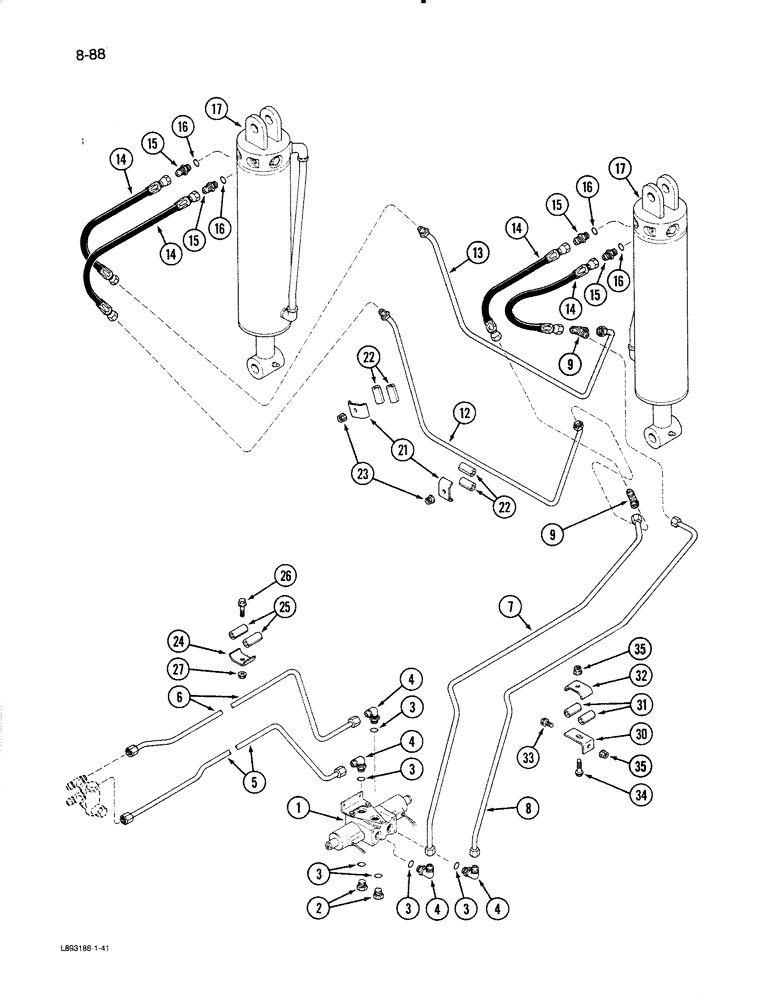

Запчасти Case IH 1670 (8-88) - LEVELING SYSTEM, VALVE TO CYLINDER (07) - HYDRAULICS

1

1304982C93

VALVE

ASSEMBLY - leveling, Includes coil and kit

1шт.

1282274C1

COIL ASSY.

COIL - leveling valve

1шт.

1282273C1

SEAL,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

KIT - valve seal repair

1шт.

2

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss

4шт.

5

1304818C1

TUBE ASSY.

TUBE - hydraulic pressure

1шт.

6

1310836C1

TUBE

- hydraulic return

1шт.

7

1304817C1

TUBE ASSY.

TUBE - hydraulic pressure

1шт.

8

1304816C1

TUBE ASSY.

TUBE - hydraulic pressure

1шт.

9

9402982

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

2шт.

12

1304815C1

TUBE ASSY.

TUBE - pressure crossover, lower

1шт.

13

1304814C1

TUBE ASSY.

TUBE - pressure crossover, upper

1шт.

14

1304292C1

HOSE ASSY.

HOSE -, Serial Range: pressure-cylinder

4шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 3/4-16 thread x 9/16 inch thread

4шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - leveling (See Figure 8-90)

2шт.

21

165601C1

CLAMP

- leveling hose retaining

2шт.

22

163491C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 1/2 inch ID

4шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

24

165601C1

CLAMP

- levleing hose retaining

1шт.

25

163491C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 1/2 inch ID

2шт.

26

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flanged, 3/8 NC x 1-1/2 inch

1шт.

27

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

30

187833C1

SUPPORT

- leveling tube retaining

1шт.

31

163491C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 1/2 inch ID

2шт.

32

165601C1

CLAMP

- leveling tube retaining

1шт.

33

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

34

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flanged, 3/8 NC x 1-1/2 inch

1шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
