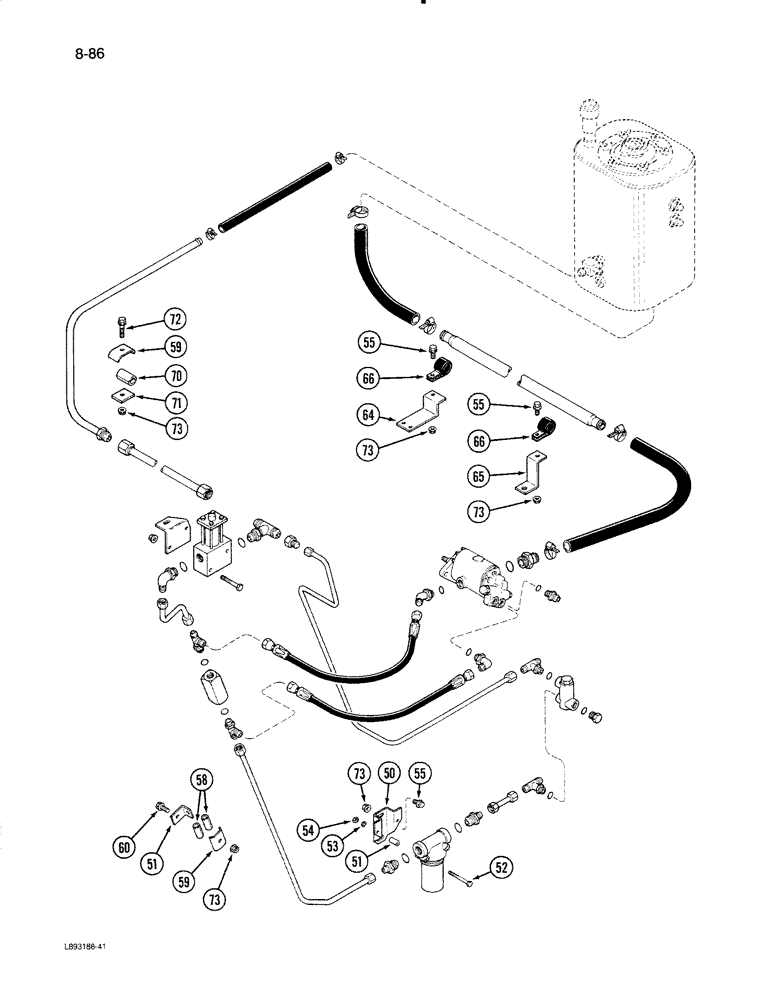

Запчасти Case IH 1670 (8-86) - LEVELING SYSTEM, RESERVOIR TO PUMP, (CONT) (07) - HYDRAULICS

50

1304929C1

SUPPORT

BRACKET - filter mounting

1шт.

51

190123C1

SPACER,1/2" Tube x 1"

- 1/2 x 1 inch

2шт.

52

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

53

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

54

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

55

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

57

1310796C1

BRACKET

- mounting

1шт.

58

163491C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 1/2 inch ID

2шт.

59

165601C1

CLAMP

- tube retaining

2шт.

60

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flanged, 3/8 NC x 1-1/2 inch

1шт.

64

1304664C1

SUPPORT TUBE,5.25, 2, 1.75" Length

SUPPORT - tube

1шт.

65

1304622C1

SUPPORT

- tube

1шт.

66

892033C1

CLAMP

- tube retaining

2шт.

70

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - cover, oil hose

1шт.

71

198462C1

PLATE

- tube retaining

1шт.

72

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

73

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.
