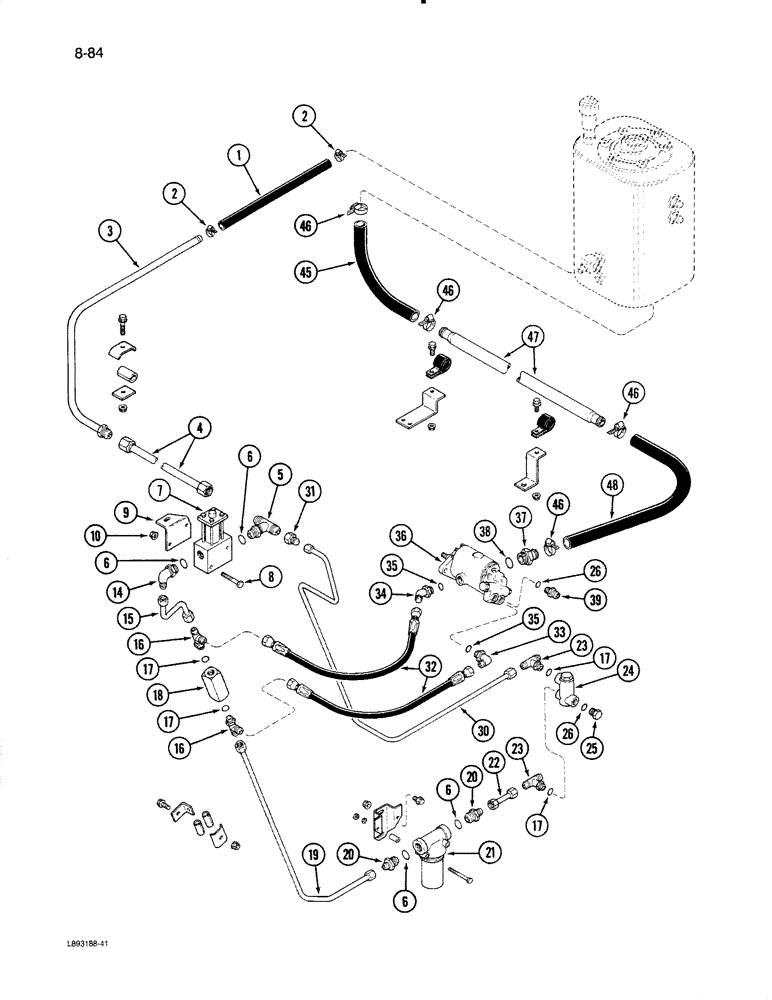

Запчасти Case IH 1670 (8-84) - LEVELING SYSTEM, RESERVOIR TO PUMP (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

HOSE - pump return, 18 inch long (Order 180720C2, Serial Range: cut-length)

1шт.

2

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

3

1304826C1

HYD TUBE

TUBE - return

1шт.

4

1304825C1

HYD TUBE,0.75" OD, 59.68" Length

TUBE - return

1шт.

5

9411120

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Br

- 1-1/16-12 adj O-ring base x 1-1/16-12 inch flared

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

7

1265654C91

VALVE

ASSEMBLY - bypass

1шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

9

1304617C1

ANGLE

BRACKET - bypass valve retaining

1шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

14

205321H1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

- 1-1/16-12 x 3/4-16 thread

1шт.

15

1304824C1

TUBE ASSY.,0.5" OD, 6, 5.4" Length

TUBE - leveling bypass

1шт.

16

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

18

1304235C1

VALVE

- check

1шт.

19

1304822C1

TUBE ASSY.

TUBE - pressure, rear

1шт.

20

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - straight, 3/4-16 flare x 1-1/16-12 inch thread

2шт.

21

573200R91

FILTER

- hydraulic, Includes element

1шт.

573201R1

ELEMENT

- hydraulic filter

1шт.

22

1310837C1

TUBE ASSY.,0.8" OD, 89 mm Length

TUBE - relief

1шт.

23

9411118

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

- adjustable, 1/2 inch

2шт.

24

852984C91

VALVE

ASSEMBLY - relief, Includes valve and kit

1шт.

852986C1

VALVE

- relief

1шт.

852988C1

SEAL KIT

- seal repair

1шт.

25

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

30

1310838C1

TUBE ASSY.

TUBE - return, rear

1шт.

31

9403405

REDUCER,37 Degree, 5/8" x 3/8" Tube

- 3/4 x 1/2 inch

1шт.

32

1304292C1

HOSE ASSY.

HOSE -, Serial Range: pressure-pump

2шт.

33

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss

1шт.

34

1304883C1

ELBOW

- 45 degree, 3/4-16 flared x 3/4-16 inch O-ring boss

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

36

REF

INSTRUCTION

PUMP - leveling (See Figure 8-82)

1шт.

37

180182C1

FITTING

CONNECTOR - 1-5/16-12 thread x 1 inch hose stem

1шт.

38

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

39

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 3/4-16 x 9/16 inch thread

1шт.

45

183887C1

FLEXIBLE HOSE,1.00" ID x 15.35", SAE 100R4, CLASS 4

HOSE - pump suction

1шт.

46

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24, Type F

4шт.

47

1304827C1

TUBE ASSY.,1.25" OD, 60" Length

TUBE - pump suction

1шт.

48

1304256C1

HYDRAULIC HOSE,1.00" ID x 26.00"

- Pump suction 1.00" ID x 26.00"

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
