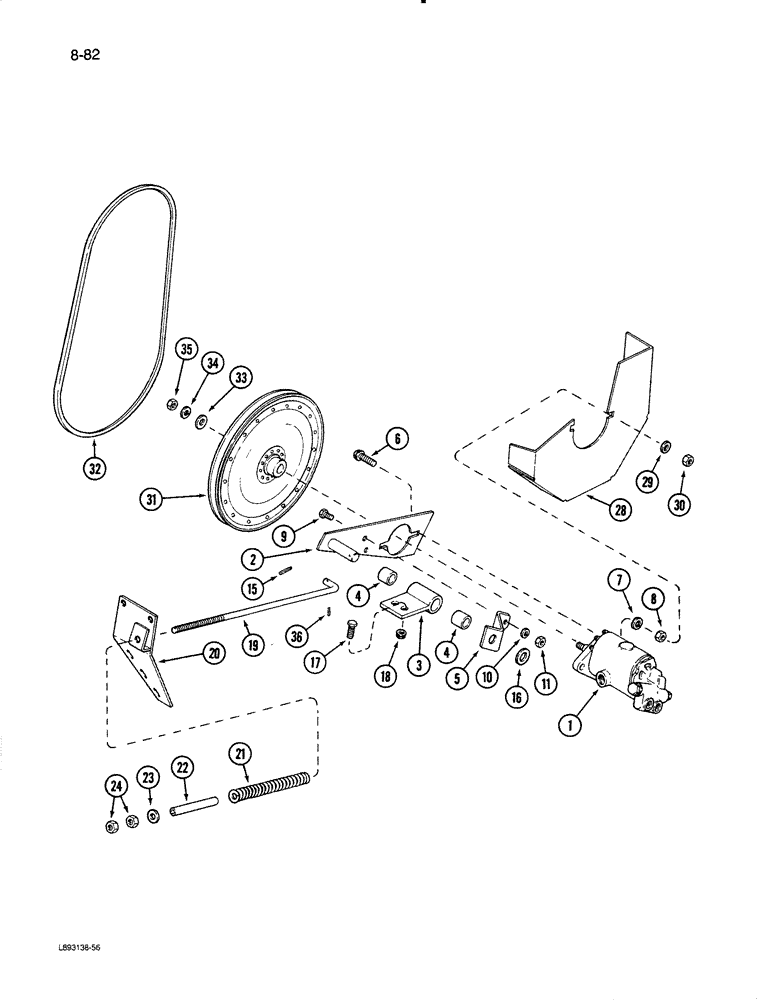

Запчасти Case IH 1670 (8-82) - LEVELING PUMP DRIVE (07) - HYDRAULICS

1

1304183C91

PUMP

ASSEMBLY - leveling, Includes kits

1шт.

1301934C1

DECAL

KIT - pump seal repair

1шт.

1301935C1

KIT

- pump back plate repair

1шт.

2

179321C2

SUPPORT

ARM - pump

1шт.

3

1304995C91

PIVOT

- pump, Includes: Ref. 4

1шт.

4

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

- pump pivot

2шт.

5

188733C1

SUPPORT

- pump

1шт.

6

111-411

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 3/4", G5

BOLT - round head square neck, 7/16 NC x 1-3/4 inch

2шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

271501

SOCKET

NUT- hex, 7/16 inch NC

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

16

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

4шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

18

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

19

1304711C1

ROD

- pump tightener spring

1шт.

20

1304707C2

SUPPORT

- engine rail

1шт.

21

12781

SPACER,3/8" Pipe x 4 3/8"

- pump tightener spring

1шт.

22

PO32

SPRING - pump tightener

1шт.

23

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

28

1304712C1

SUPPORT

SHIELD - pump drive

1шт.

29

25846R1

WASHER

- flat, 15/32 x 7/8 x 1/16 inch

1шт.

30

129-104

NUT,7/16"-14, G5

1шт.

31

1304182C1

PULLEY

- pump driven

1шт.

32

1304181C1

V-BELT,62.99" L

Pump Drive 62.99" L

1шт.

33

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch

1шт.

34

632019R1

LOCK WASHER,3/8"

L.H. twist 3/8"

1шт.

35

125-10003

NUT,3/8"-16, G5, LH

- hex, 3/8 inch NC, left hand thread

1шт.

36

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.
