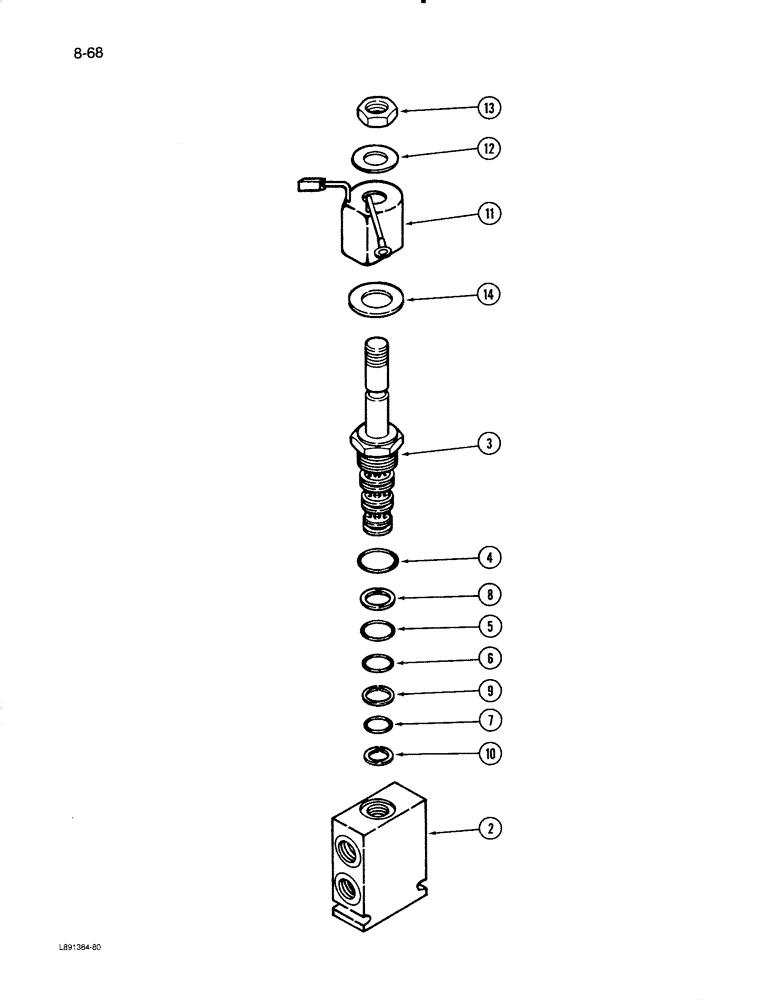

Запчасти Case IH 1670 (8-68) - FEEDER AND SEPARATOR CLUTCH VALVE, MODULAR CONTROL (07) - HYDRAULICS

187505C91

VALVE

ASSEMBLY - feeder and separator clutch, Includes: Ref. 2 - 14 and kit

1шт.

2

187851C1

BODY

- valve

1шт.

3

187849C1

SOLENOID VALVE

VALVE - four way solenoid, Includes: Ref. 4 - 10 and four way valve

1шт.

187850C1

SEAL KIT

KIT - o-ring and washer, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

187852C1

SWITCH

KIT - solenoid coil, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

COIL AND HOUSING ASSEMBLY - valve

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - valve

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.
