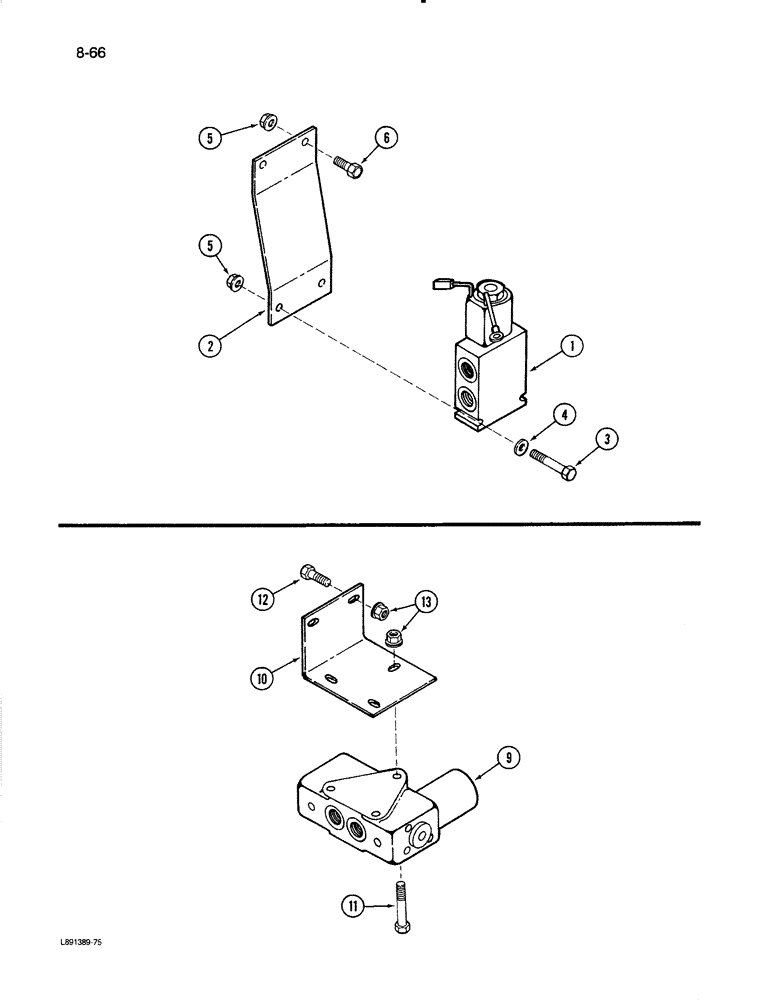

Запчасти Case IH 1670 (8-66) - SEPARATOR CLUTCH VALVE MOUNTING, MODULAR CONTROLS, CONTROL CONCEPTS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (See Figure 8-68)

1шт.

2

187506C1

SUPPORT

- separator clutch valve

1шт.

3

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

4

22859R1

WASHER

- flat, 11/32 x 5/4 x 21/32 inch

2шт.

5

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

4шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (See Figure 8-70), control concepts

1шт.

10

1301037C1

ANGLE

SUPPORT - separator clutch valve, control concepts

1шт.

11

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch, control concepts

3шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Control concepts Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

13

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch, NC, control concepts

5шт.
