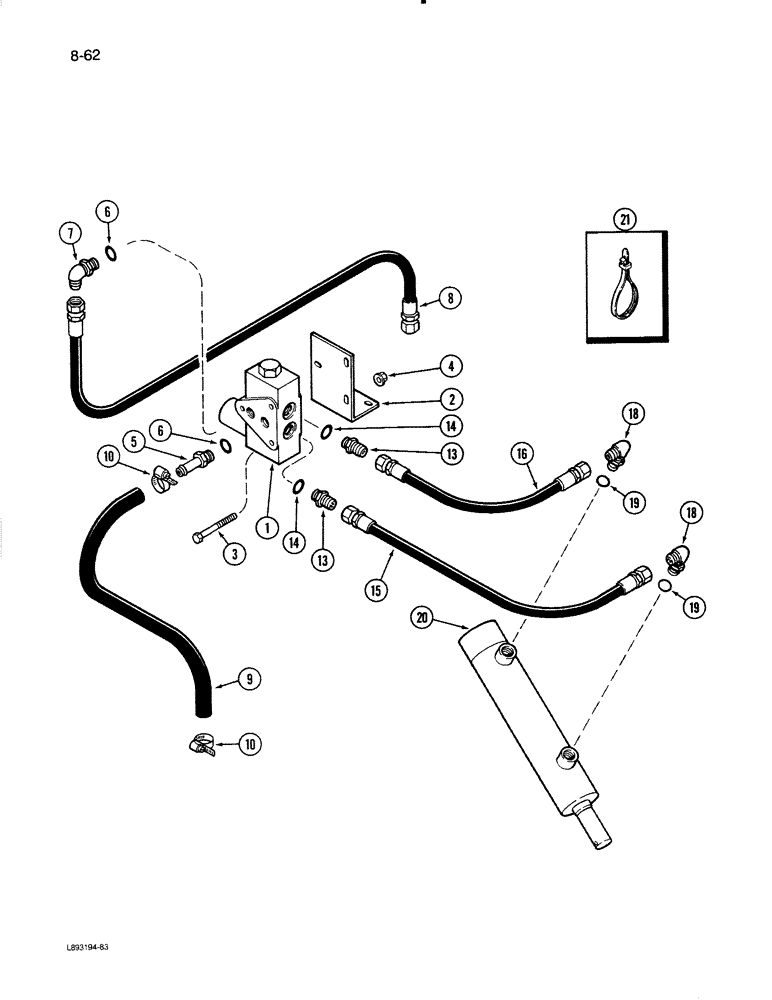

Запчасти Case IH 1670 (8-62) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (See Figure 8-70)

1шт.

2

1301037C1

ANGLE

SUPPORT - separator clutch valve

1шт.

3

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

1шт.

4

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.

5

178036C1

CONNECTOR, ELEC

FITTING - beaded tube, 3/8 inch ID hose

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss

1шт.

8

178961C1

HOSE,7.9 mm ID x 1270.00 mm, SAE 100R1

- Cylinder Lower 7.9 mm ID x 1270.00 mm, SAE 100R1

1шт.

9

NSS

NOT SOLD SEPARAT

HOSE - separator clutch return, 22 inch long (Order S118400, Serial Range: cut-length)

1шт.

10

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adjustable, includes screw #4, 0.25/0.62 Type F Worm

2шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

15

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Feeder Clutch 0.31" ID x 20.00", SAE 100R1

1шт.

16

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE ASSEMBLY - separator clutch, 3/8 ID x 17 inch

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss

2шт.

20

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSEMBLY - hydraulic, separator clutch (See Figure 8-74)

1шт.

21

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
