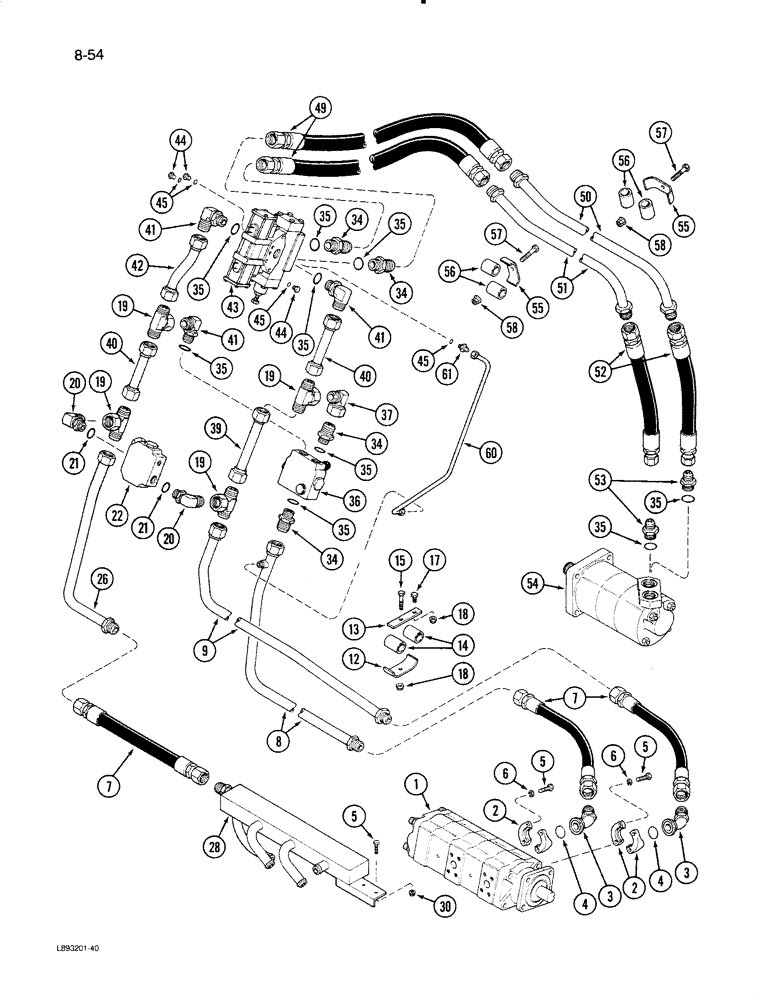

Запчасти Case IH 1670 (8-54) - HEADER AND REEL DRIVE, SELECTOR VALVE SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - header and reel drive (See Figure 8-46)

1шт.

2

877949C2

CLAMP

FLANGE - clamp retaining

4шт.

3

1304968C1

ELBOW

TUBE - 45 degree elbow

2шт.

4

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-5/16 x 1-9/16 inch

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

6

492-11038

LOCK WASHER,3/8"

8шт.

7

1304261C1

HYDRAULIC HOSE,1.00" ID x 20.00", SAE 100R2

- Reel drive pump, Pressure 1.00" ID x 20.00", SAE 100R2

3шт.

8

1304906C1

HYD TUBE,1" OD, 37.5, 14.3, 4" Length

TUBE - header drive pressure

1шт.

9

1304907C1

TUBE ASSY.

TUBE - header drive pressure

1шт.

12

1304932C1

CLAMP

- retaining

1шт.

13

195703C1

BAR

BRACKET - support retaining

1шт.

14

187935C1

STRIP

- pressure tube clamp

2шт.

15

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

19

9410311

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

- 1-5/16-12 thread swivel

4шт.

20

153619C91

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree

2шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

22

1304231C91

VALVE

- relief

1шт.

26

1304905C1

TUBE ASSY.,1" OD, 20.5, 13.3" Length

TUBE - header drive return

1шт.

28

1304678C1

MANIFOLD

- header and reel drive

1шт.

30

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

34

472755R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x1 3/16"-12, O-Ring

CONNECTOR - straight, 7/8 inch

4шт.

35

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-7/32 x 7/64 inch

7шт.

36

1304234C91

VALVE

- flow control

1шт.

37

9410285

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 1 inch

1шт.

39

1304853C1

TUBE ASSY.

TUBE - header drive pressure

1шт.

40

1304912C1

HYD TUBE

TUBE - header drive return

2шт.

41

533566R1

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 3/16"-12, O-Ring

- 90 degree, 7/8 inch

3шт.

42

1304854C1

TUBE ASSY.,1" OD, 74, 1.8" Length

TUBE - header drive return

1шт.

43

1304243C91

VALVE

- selector

1шт.

44

9410356

PLUG

- 1/4 inch straight thread o-ring boss

3шт.

45

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

4шт.

49

1304267C2

HOSE

- header drive, 86 inch long

2шт.

50

1304849C1

TUBE ASSY.,1" OD, 45.81, 10.87" Length

TUBE - header drive

1шт.

51

1304897C1

TUBE ASSY.,1" OD, 45.87, 9.5" Length

TUBE - header drive

1шт.

52

1304263C1

HOSE

- header drive

2шт.

53

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - straight, 1-1/16-12 thread

2шт.

54

1310797C91

MOTOR

ASSEMBLY - header drive, Includes kits

1шт.

1301932C2

SEAL KIT

- shaft seal repair

1шт.

1301933C2

PACKAGE

KIT - seal repair

1шт.

55

1304932C1

CLAMP

- retaining

2шт.

56

187935C1

STRIP

SLEEVE - tube retaining

4шт.

57

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

58

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

60

1304855C1

TUBE

- pilot pressure

1шт.

61

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - short, 9/16-18 x 7/16-20 thread

1шт.
