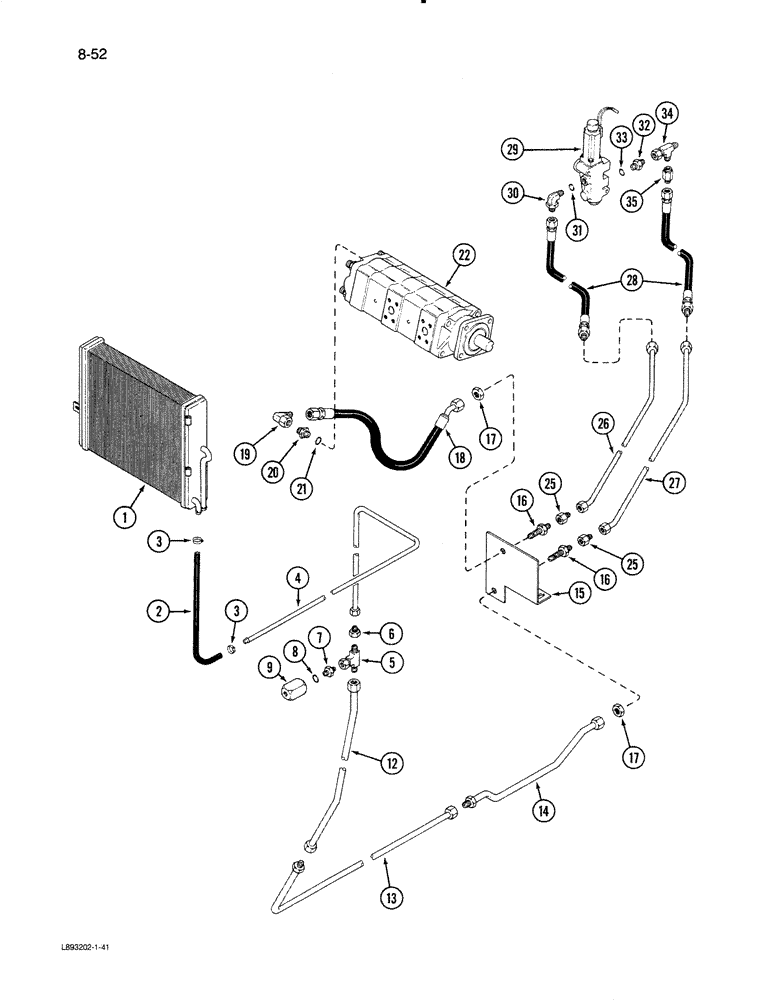

Запчасти Case IH 1670 (8-52) - HEADER AND REEL DRIVE, OIL COOLER TO PUMP SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER - hydraulic oil (See Figure 8-14)

1шт.

2

171939C1

HOSE ASSY.

HOSE - oil cooler

2шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

4

1957422C1

TUBE ASSY.

TUBE - oil cooler

1шт.

5

9410309

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- 1-1/16-12 swivel base x 1-1/16-12 inch flared

1шт.

6

1304639C1

REDUCER

CONNECTOR - tube

2шт.

7

587577R1

CONNECTION,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 x 1/2 inch

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1304236C1

VALVE

- check

1шт.

12

1304831C1

TUBE ASSY.

TUBE - reel drive return

1шт.

13

1304830C1

TUBE ASSY.,0.75" OD, 54, 7.6" Length

TUBE - reel drive return

1шт.

14

1304829C1

TUBE ASSY.,0.75" OD, 23.8, 4.3" Length

TUBE - reel drive return

1шт.

15

1957417C1

SUPPORT

PLATE - tube support

1шт.

16

9403257

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

UNION - bulkhead, 3/4 inch

2шт.

17

9403296

LOCK NUT,Blkhd, 1 1/16"-12

NUT - bulkhead union lock, 3/4 inch

2шт.

18

1304279C1

HOSE

- reel drive pressure

1шт.

19

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 1-1/16-12 inch flare

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

22

REF

INSTRUCTION

PUMP - header and reel drive (See Figure 8-46)

1шт.

25

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING - reducer, 1/2 x 3/8 inch

2шт.

26

1324369C1

TUBE

- hydraulic

1шт.

27

1324370C1

TUBE

- hydraulic

1шт.

28

1331295C1

HOSE ASSY.,12.70 mm ID x 508.00, SAE 100R2

HOSE ASSY, 12.70 mm ID x 508.00 mm,SAE 100R2, Hydraulic, Reel Drive Valve

2шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive (See Figure 8-96)

1шт.

30

936450R1

ELBOW

- 90 degree

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch swivel

1шт.

35

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

1шт.
