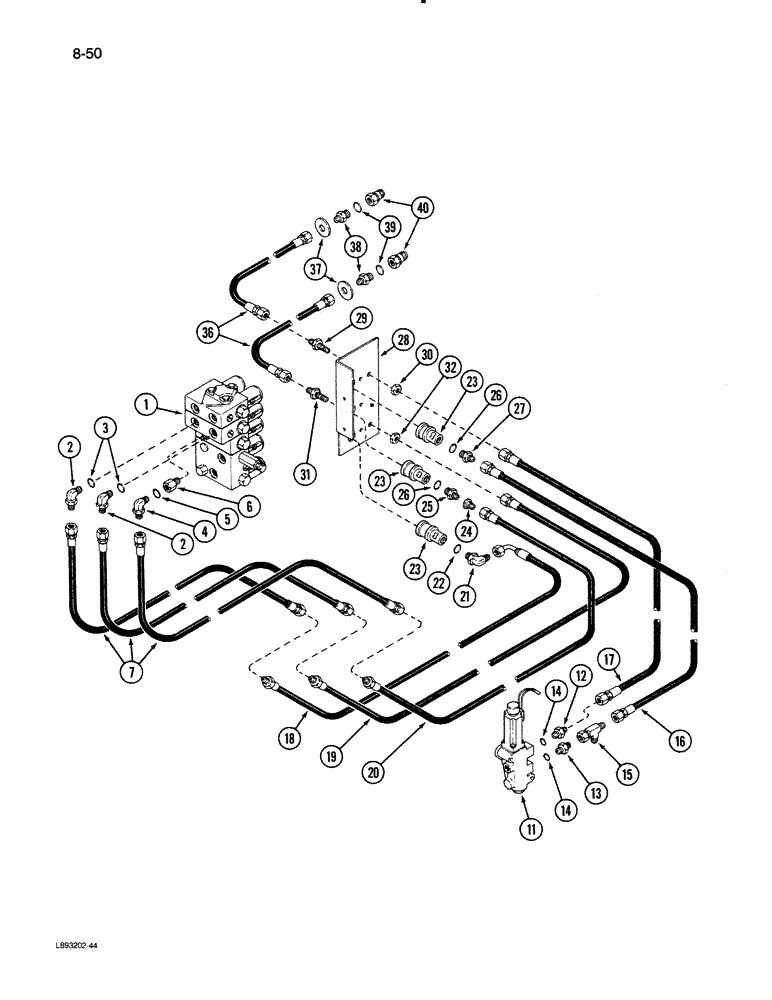

Запчасти Case IH 1670 (8-50) - HEADER AND REEL DRIVE, CONTROL VALVE SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic stack control (See Figure 8-32)

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flared x 3/4-16 inch o-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flared

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - short, 9/16-18 x 7/16-20 thread

1шт.

7

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

9.52 mm ID x 2795.00 mm

3шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive (See Figure 8-96)

1шт.

12

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

15

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch swivel

1шт.

16

1331292C1

HOSE ASSY.,9.52 mm ID x 2362.00, SAE 100R1

HOSE ASSY, 9.53 mm ID x 2362.00 mm, SAE 100R1, Hydraulic, Reel Drive Valve

1шт.

17

1331291C1

HOSE ASSY.,9.52 mm ID x 2438.00, SAE 100R1

HOSE ASSY, 9.53 mm ID x 2438.00 mm, SAE 100R1, Hydraulic, Reel Drive Valve

1шт.

18

1331288C1

HOSE - hydraulic, control valve

1шт.

19

1331289C1

HOSE - hydraulic, control valve

1шт.

20

1331290C1

HOSE - hydraulic, control valve

1шт.

21

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, 7/8-14 thread

3шт.

24

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING - reducer, 1/2 x 3/8 inch

1шт.

25

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

27

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

28

1331294C1

SUPPORT

PLATE - hose support

1шт.

29

9403255

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - bulkhead, 3/4-16 inch flared

1шт.

30

9403294

NUT

- bulkhead hex lock, 3/4-16 inch

1шт.

31

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

32

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

1шт.

36

1327608C1

HOSE

- reel drive, 40 inch

2шт.

37

1327631C1

WASHER

- flat, red

2шт.

38

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 9/16-18 flared x 7/8-14 inch o-ring boss

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

40

1272399C1

UNION

COUPLER - male

2шт.
