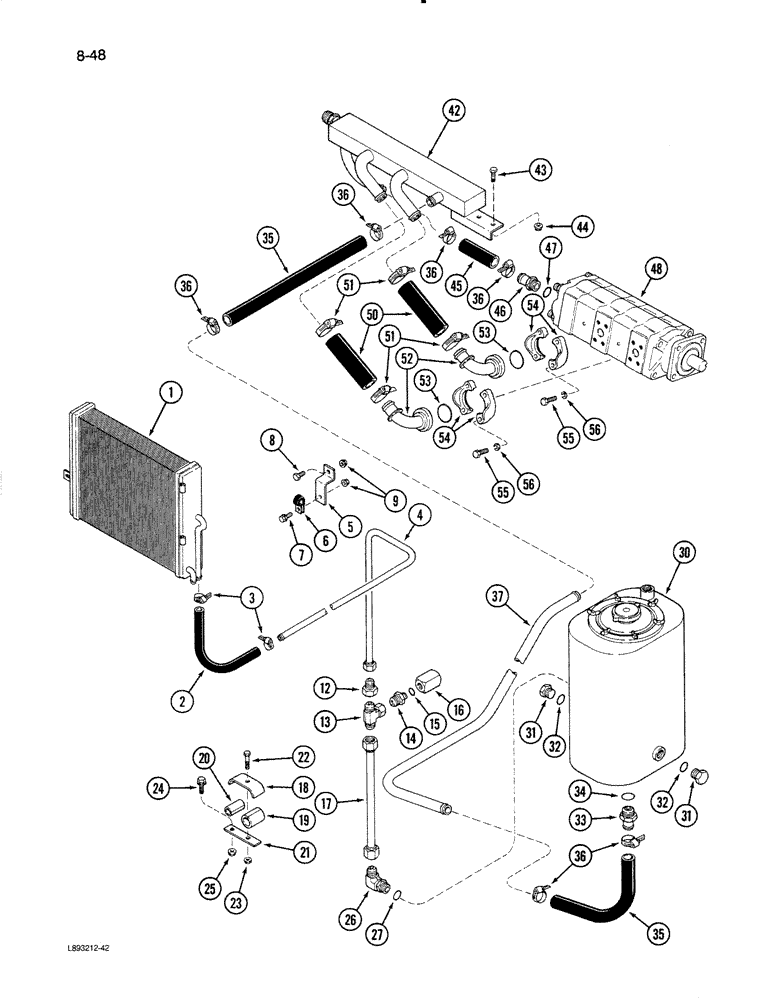

Запчасти Case IH 1670 (8-48) - HEADER AND REEL DRIVE, OIL COOLER AND RESERVOIR SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER - oil (See Figure 8-14)

1шт.

2

171939C1

HOSE ASSY.

HOSE - oil cooler

2шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

4шт.

4

1957422C1

TUBE ASSY.

TUBE - oil cooler

1шт.

5

196517C1

SUPPORT TUBE

SUPPORT - tube clamp retaining

1шт.

6

129083R1

CLAMP

CLIP - hose, 5/8 inch

1шт.

7

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

12

1304639C1

REDUCER

CONNECTOR - tube

2шт.

13

9410309

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- 1-1/16-12 swivel base x 1-1/16-12 inch flared

2шт.

14

587577R1

CONNECTION,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 x 1/2 inch

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

16

1304236C1

VALVE

- check

1шт.

17

1304835C1

TUBE ASSY.

TUBE - reservoir to relief valve

1шт.

18

1304932C1

CLAMP

- retaining

1шт.

19

187935C1

STRIP

- pressure tube clamp

1шт.

20

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - cover, oil hose

1шт.

21

195703C1

BAR

BRACKET - support retaining

1шт.

22

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

24

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

1шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

26

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adj, 1-1/16-12 inch flare x O-ring boss

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

30

REF

INSTRUCTION

RESERVOIR - hydraulic oil (See Figure 8-2 or 8-4)

1шт.

31

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube Hex Hd, 1 1/16"-12 ORB

2шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

33

180182C1

FITTING

CONNECTOR - 1-5/16-12 thread x 1 inch hose stem

1шт.

34

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

4шт.

35

198302C1

HYDRAULIC HOSE,1.00" ID x 18.50", SAE 100R4 Class 4, SAE 100R3 Class 5

1.00" ID x 18.50", SAE 100R4 Class 4, SAE 100R3 Class, Manifold Suction

2шт.

36

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24, Type F

6шт.

37

1304856C1

TUBE ASSY.

TUBE -, Serial Range: reservoir-manifold

1шт.

42

1304678C1

MANIFOLD

- header and reel drive

1шт.

43

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

44

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

45

1304977C1

HOSE,1.00" ID x 4.50", SAE 100R4

CLASS 4, Header Pump Suction 1.00" ID x 4.50", SAE 100R4

1шт.

46

195731C1

CONNECTOR, ELEC

CONNECTOR - hose retaining, 1-1/16-12 thread x 1 inch

1шт.

47

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

48

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Figure 8-46)

1шт.

50

1304293C1

HOSE,31.75 mm ID x 177.80 mm

Flexible, , Header Pump Suction 31.75 mm ID x 177.80 mm

2шт.

51

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

52

1304966C1

ELBOW

TUBE - 90 degree elbow

2шт.

53

343921R1

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- 1-7/8 x 2-1/8 inch

2шт.

54

301844R1

FLANGE

- split clamp retaining

4шт.

55

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.
