(8-46) - HEADER AND REEL DRIVE PUMP

Запчасти Case IH 1670 (8-46) - HEADER AND REEL DRIVE PUMP (07) - HYDRAULICS

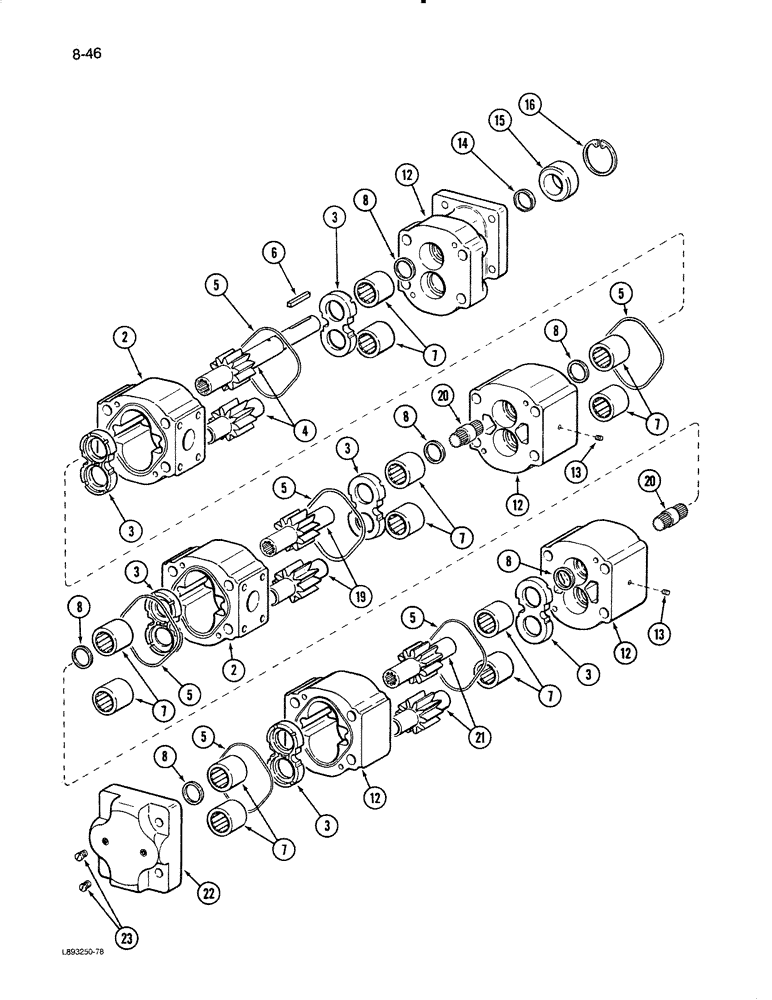

Схема запчастей Case IH 1670 - (8-46) - HEADER AND REEL DRIVE PUMP (07) - HYDRAULICS
12
8
8
12
7
3
19
13
13
5
3
14
7
2
5
5
16
21
23
7
3
22
8
3
12
8
20
7
5
12
3
3
2
4
5
5
15
7
7
8
20
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1304186C91

PUMP

ASSEMBLY - header and reel drive, Includes: Ref. 2 - 23

1шт.

2

637664C1

HOUSING

- pump

2шт.

3

610228C2

PLATE

- gear

6шт.

4

1304198C1

GEAR-SET

GEAR SET - pump, matched

1шт.

5

3035569R1

SEAL

- housing

6шт.

6

1304268C1

KEY

- gear shaft

1шт.

7

610247C91

BEARING

- pump

12шт.

8

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- bearing oil

6шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order 1304186C91)

3шт.

13

634197C1

PLUG

- housing

2шт.

14

L32318

SEAL

- housing

1шт.

15

3035655R91

BALL BEARING

- pump

1шт.

16

3035667R1

RING

- retaining snap

1шт.

19

3035662R91

GEAR SET - pump

1шт.

20

3035663R1

SHAFT - pump

2шт.

21

631238C1

GEAR SET - pump

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - end (Order 1304186C91)

1шт.

23

625322R1

PLUG

- end cover

2шт.
