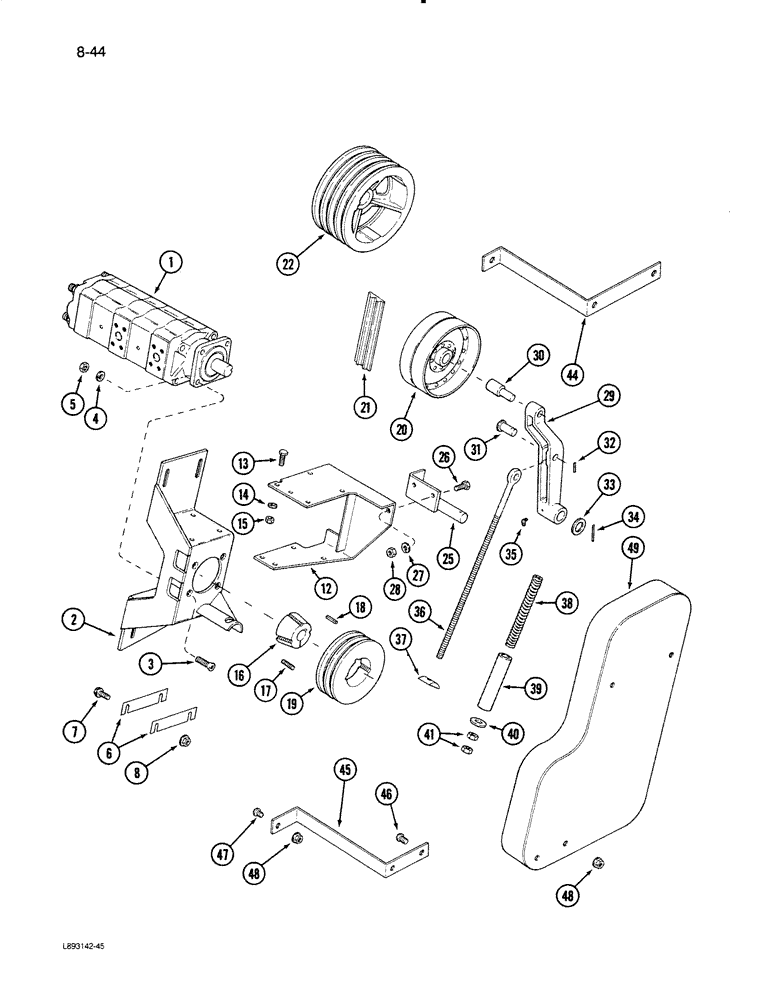

Запчасти Case IH 1670 (8-44) - HEADER AND REEL PUMP DRIVE (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - header and reel drive (See Figure 8-46)

1шт.

2

1314061C1

SUPPORT

- pump mounting

1шт.

3

1314124C1

SCREW,Flat Hd, 1/2" - 13 x 2"

BOLT - pump retaining

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

1304740C1

BAR

SHIM - mounting support, 0.06 inch

2шт.

6

1304741C1

BAR

SHIM - mounting support, 0.12 inch

1шт.

7

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

- hex flange lock, 1/2 NC x 1-1/2 inch

2шт.

8

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

12

1314060C1

SUPPORT

- idler shaft

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

7шт.

16

1304136C1

HUB

BUSHING - pulley

1шт.

17

83-15016

SET SCREW,Hex Soc, 1/2"-13 x 1"

SCREW - hex socket set, 1/2 NC x 1 inch

3шт.

18

1304268C1

KEY

- gear shaft

1шт.

19

1304185C1

PULLEY

- pump

1шт.

20

174757C1

PULLEY

- separator belt idler, 8 inch OD

1шт.

When the new Pulley 1331251C1 is used, Ref #30 Bearing is Eliminated.

1шт.

1331251C1 Pulley for new machines

1шт.

21

1304061C2

V-BELT,0.88" W x 119.19" L

Pump Drive 0.88" W x 119.19" L

1шт.

22

191603C2

PULLEY

- feeder drive, 12 inch OD

1шт.

25

1314067C1

SUPPORT

- idler pivot

1шт.

26

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

29

171227C1

LEVER

ARM - belt tightener

1шт.

30

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

- idler pulley

1шт.

31

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN - clevis, 1/2 x 1-3/4 inch

1шт.

32

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

33

614451R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/32 inch

1шт.

34

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

35

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - lube, 90 degree 1/4-28 inch thread

1шт.

36

171479C1

BOLT,1/2" - 13 x 24.70"

- tightener

1шт.

37

194652C1

PIVOT

BAR - drive pivot

1шт.

38

PO23

SPRING

- bolt tightener

1шт.

39

190462C1

TUBE,1.171" ID, 1.315" OD, 6.88" Length

- tightener spring

1шт.

40

22042R1

WASHER

- flat, 17/32 x 2 x 7/64 inch

1шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

44

1304549C2

SUPPORT

BRACKET - shield, upper

1шт.

45

1304615C2

SUPPORT

BRACKET - shield, lower

1шт.

46

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

3шт.

47

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

2шт.

48

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

5шт.

49

1304483C1

SUPPORT

SHIELD - pump drive

1шт.
