Запчасти Case IH 1670 (8-34) - CONTROL VALVE AND MOUNTING, WITH FORE AND AFT REEL CONTROL (07) - HYDRAULICS

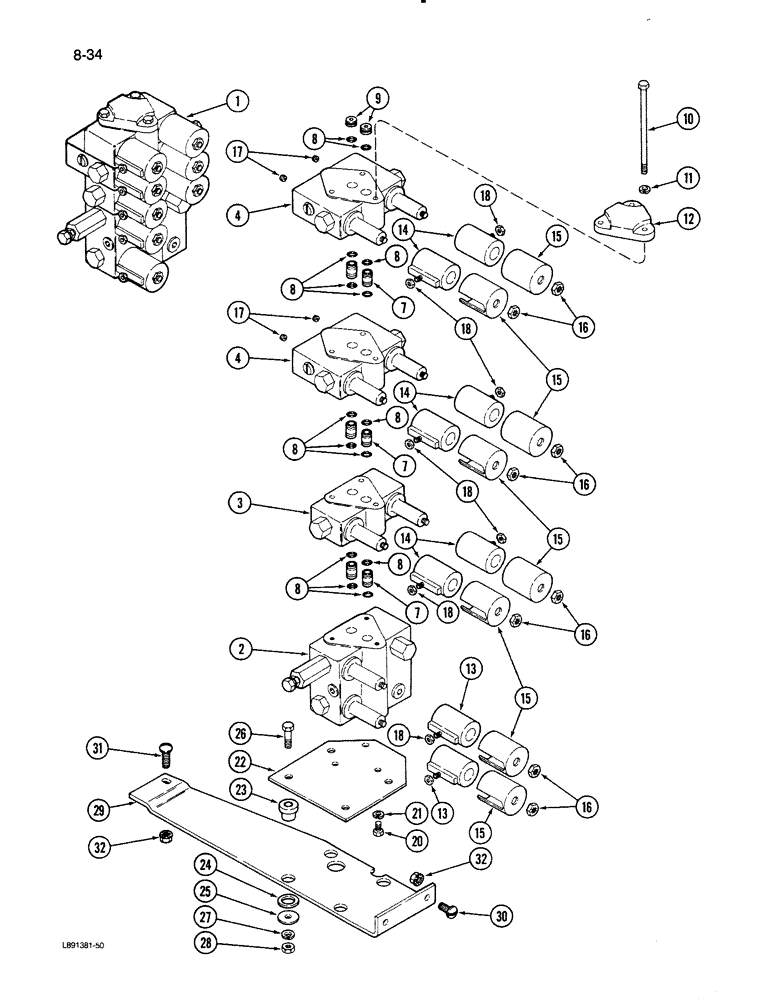

Схема запчастей Case IH 1670 - (8-34) - CONTROL VALVE AND MOUNTING, WITH FORE AND AFT REEL CONTROL (07) - HYDRAULICS
18
24
15
1
16
8
21
18
28
13
31
22
8
7
14
26
25
16
16
11
32
12
10
13
8
8
29
32
15
4
8
7
4
16
17
7
30
18
8
17
15
27
23
2
3
9
18
14
18
15
20
15

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (Order components), Includes: Ref. 2 - 18

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - header (See Figure 8-36 and 8-38)

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - unload single/bi-directional (See Figure 8-40)

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - double piloted (See Figure 8-42)

2шт.

7

1301630C1

TUBE

- through

6шт.

1282281C1

O-RING

SEAL KIT - valve repair, Includes: Ref. 8

1шт.

8

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- 3/8 x 1/2 x 1/16 inch

14шт.

9

1301634C1

VALVE

PLUG - cap

2шт.

10

18668R1

BOLT,Hex, 1/4" - 20 x 6", Gr 2

- hex, 1/4 NC x 6 inch

3шт.

11

NLS

NO LONGER SERVICED

- external lock, 1/4 inch

3шт.

12

85258C1

CAP

- end

1шт.

13

1301730C1

VALVE

COIL - solenoid, valve

2шт.

14

1301633C1

COIL

SWITCH - coil, valve

6шт.

15

1301632C1

CAP

COVER - coil

8шт.

16

107825

NUT,Stamped, 1/2"-20

- hex stamped, 1/2 inch NF

8шт.

17

1301637C1

ORIFICE

PLUG - orifice

4шт.

18

112432

NUT,#10-32, Brass

Machine screw #10-32, Brass

14шт.

20

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

22

183683C1

BAR

PLATE - mounting, control valve

1шт.

23

196504C1

BUSHING

- header lift valve

4шт.

24

366112R1

WASHER

- flat, 25/32 x 1-1/4 x 7/64 inch

4шт.

25

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch

4шт.

26

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

29

183684C1

SUPPORT

- control valve

1шт.

30

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

31

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

Выбрано товаров: 30
