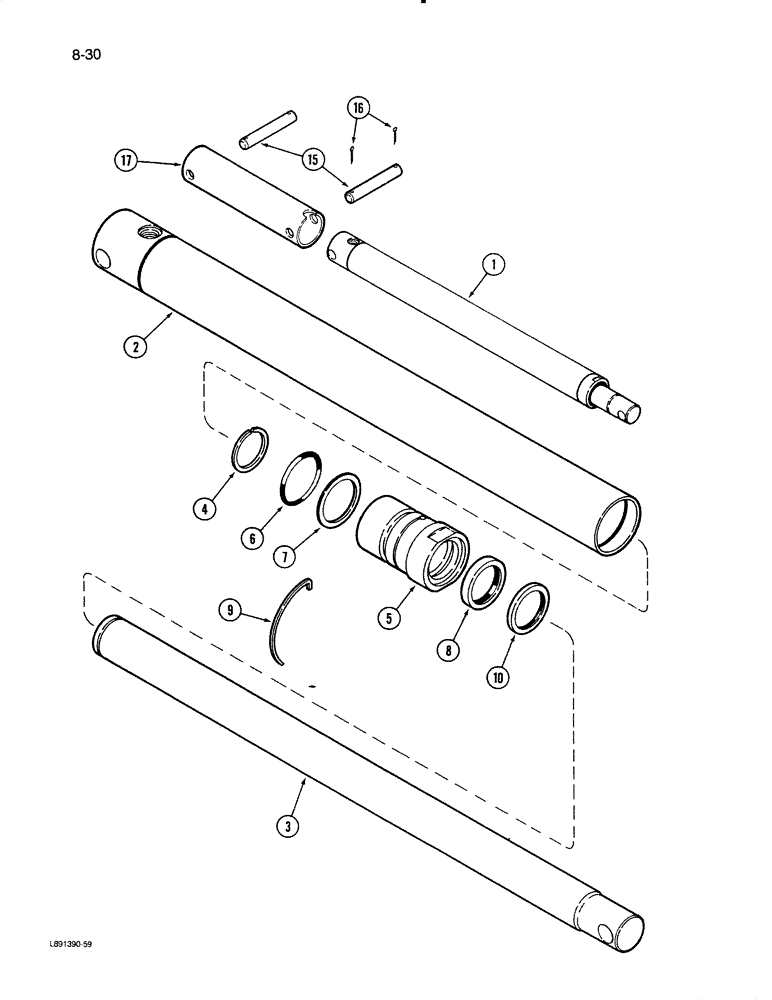

Запчасти Case IH 1670 (8-30) - HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - hydraulic, Includes: Ref. 2 - 10 and kit

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1670 CASE IH HILLSIDE COMBINE, Assembly, hydraulic

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order 127779C94)

1шт.

3

127780C2

ROD

- piston

1шт.

4

NSS

NOT SOLD SEPARAT

RING - stop, piston rod

1шт.

Part of O-Ring and seal kit P/N 224718C92

1шт.

5

142568C2

HEAD

- front

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 2-1/2 x 2-11/16 inch, front head

1шт.

Part of O-Ring and seal kit P/N 224718C92

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

Part of O-Ring and seal kit P/N 224718C92

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of O-Ring and seal kit P/N 224718C92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of O-Ring and seal kit P/N 224718C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring and seal kit P/N 224718C92

1шт.

224718C92

SEAL KIT

KIT - o-ring and seal, Includes: Ref. 4, 6, 7, 8, 9 and 10

1шт.

15

573762R1

PIN,25.4mm OD x 130.97mm L

- header lift cylinder, 1 x 5-5/32 inch

1шт.

15

195822C1

PIN,25.4mm OD x 228.6mm L

- header lift cylinder (Used with third cylinder)

1шт.

16

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

17

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

- lift cylinder extension (If equipped)

1шт.

17

1319896C1

SUPPORT ASSY.

SLEEVE - lift cylinder extension (If equipped)

1шт.
