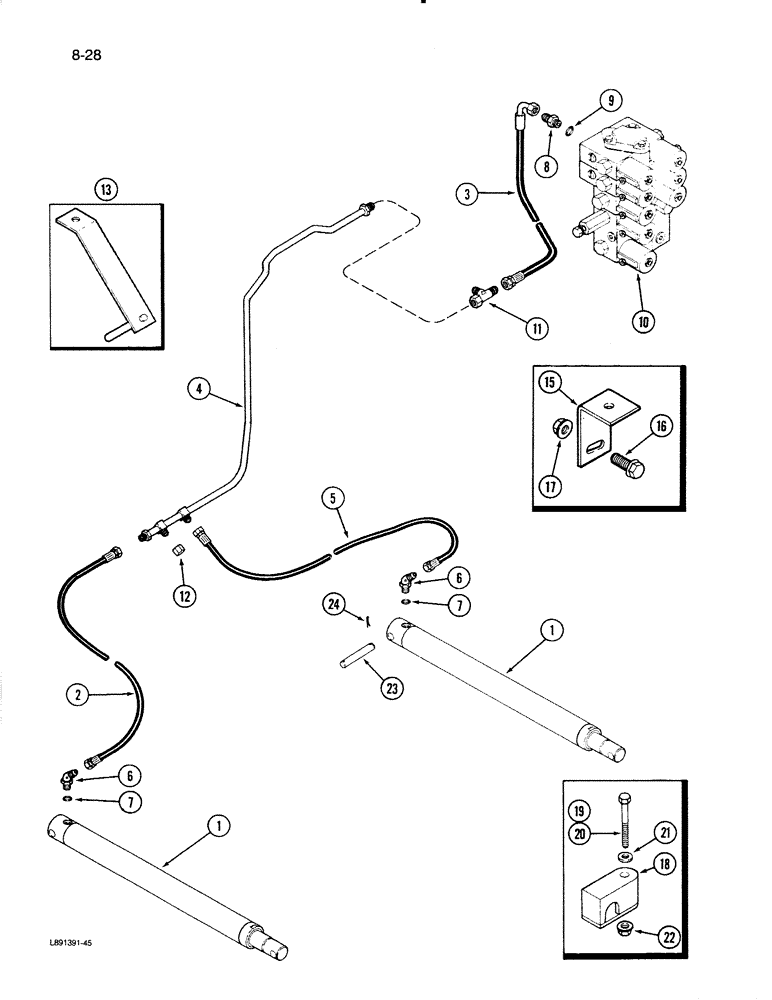

Запчасти Case IH 1670 (8-28) - HEADER LIFT CYLINDER SYSTEM, WITHOUT THIRD LIFT CYLINDER ATTACHMENT (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift (See Figure 8-30)

2шт.

2

1310709C1

HOSE

- header lift cylinder, 45 inch

1шт.

3

1310862C1

HOSE

- header lift, 29 inch

1шт.

4

1310832C1

TUBE

ASSEMBLY - header lift cylinder

1шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- header lift cylinder, 31 inch

1шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree adjustable, 1/2 inch tube 3/4-16 thread

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 7/8-14 thread

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 5/8 OD tube

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-32 and 8-34)

1шт.

11

REF

INSTRUCTION

TEE - used with accumulator attachment (See Figure 8-76)

1шт.

12

218-755

CAP,37 Degree, 3/4"-16

1шт.

13

173143C1

SUPPORT ASSY.

SUPPORT - header lift hose

1шт.

15

176394C1

ANGLE

- header lift tubes

1шт.

16

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flanged lock, 5/16 NC x 3/4 inch

1шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

1шт.

18

183822C1

CLAMP

- header lift tube

3шт.

19

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

2шт.

20

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

1шт.

21

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

3шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged lock, 1/4 inch NC

3шт.

23

573762R1

PIN,25.4mm OD x 130.97mm L

- cylinder retaining

4шт.

24

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.
