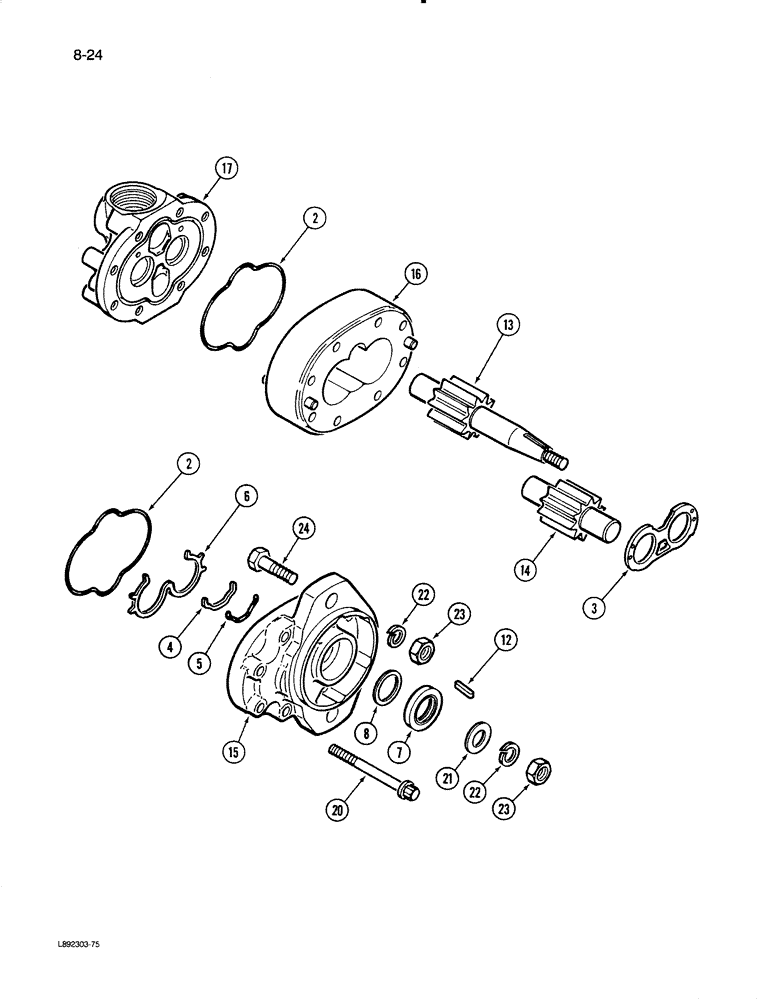

Запчасти Case IH 1670 (8-24) - AUXILIARY HYDRAULIC PUMP (07) - HYDRAULICS

1272258C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary hydraulic, 15 GPM, new, Includes: Ref. 2 - 20 and kit

1шт.

1272258C92R

REMAN-HYD PUMP

PUMP ASSEMBLY - auxiliary hydraulic, 15 GPM

1шт.

1272258C92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1272257C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary hydraulic, 12-1/2 GPM, new, Includes: Ref. 2 - 20 and kit

1шт.

87607373R

REMAN-HYD PUMP

PUMP ASSEMBLY - auxiliary hydraulic, 12-1/2 GPM

1шт.

87607373C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1272638C2

SEAL KIT

KIT - seal, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - molded

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - back-up

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - SHAFT

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

12

ZA703292

BUCKET TOOTH KEY

KEY - shaft

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pump retaining

8шт.

21

178373R1

WASHER

- 17/32 x 1 x 3/64 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.
