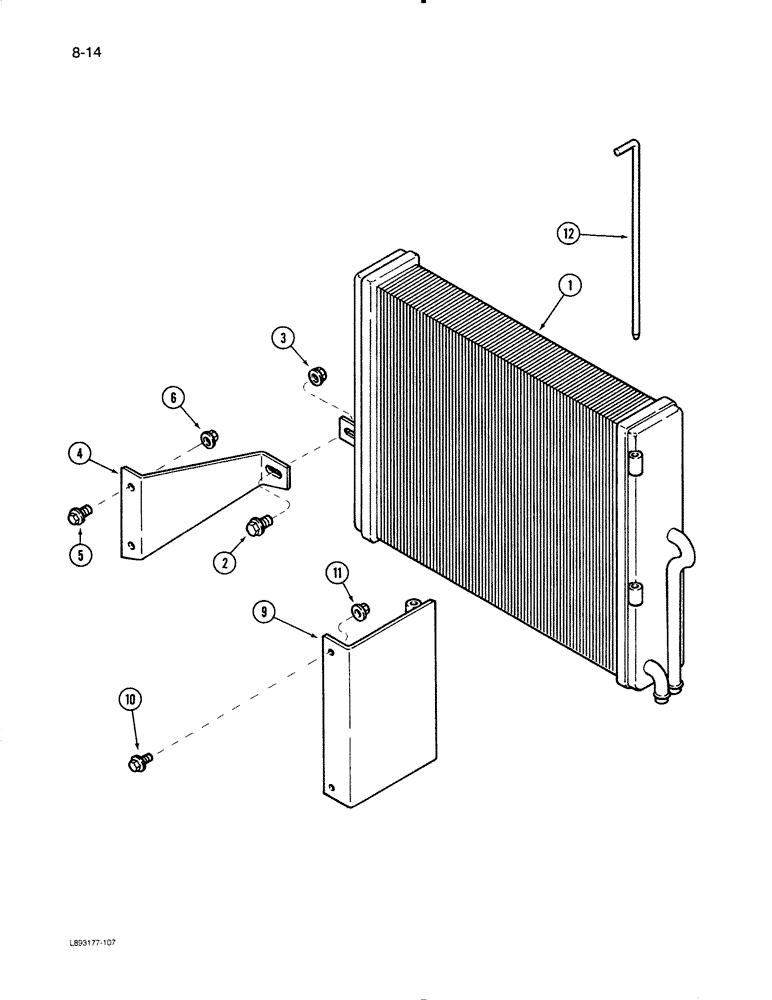

Запчасти Case IH 1670 (8-14) - 536349R1 OIL COOLER (07) - HYDRAULICS

1

536349R1

COOLER

- oil

1шт.

2

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

4

1304924C1

SUPPORT

- oil cooler

1шт.

5

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

9

1304925C2

SUPPORT

- oil cooler

1шт.

10

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

12

1304927C1

PIN

- cooler hinge

1шт.
