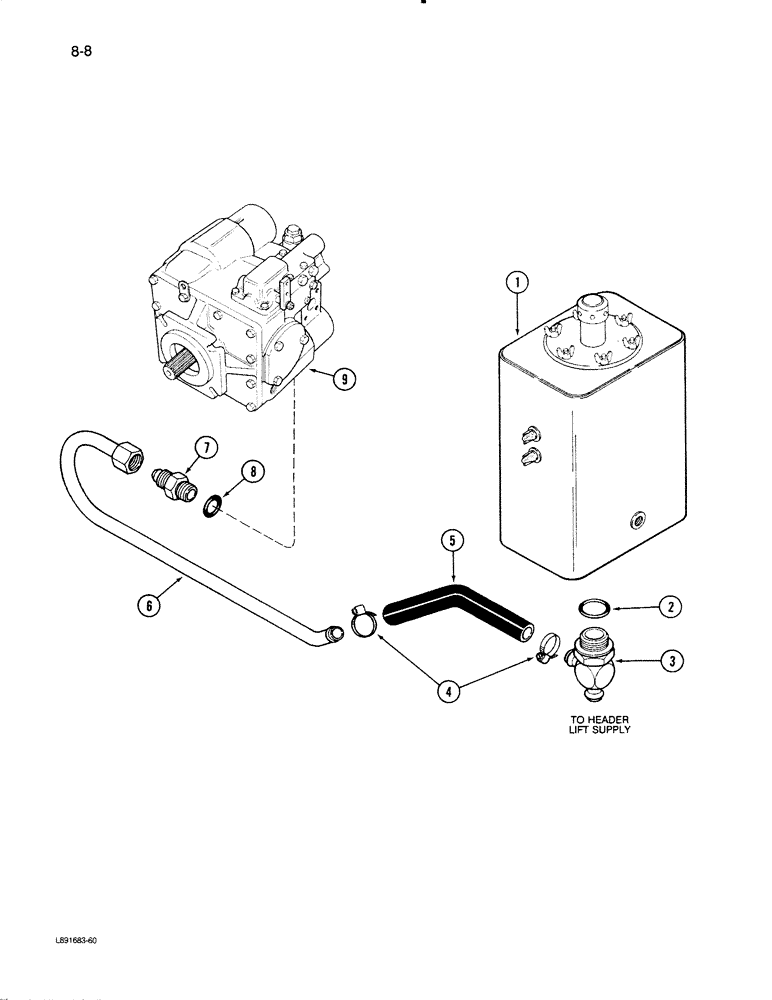

Запчасти Case IH 1670 (8-08) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic (See Figure 8-2 and 8-4)

1шт.

2

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1/2 inch OD tube

1шт.

3

1301506C1

TEE

- beaded tube, 1-7/8-12 thread x 1 inch OD

1шт.

4

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose, No. 24, Type F

2шт.

5

NSS

NOT SOLD SEPARAT

HOSE - oil, 1 OD x 14 inch long (Order 637728C1, Serial Range: cut-length)

1шт.

6

183593C1

HYD TUBE

TUBE - charge suction

1шт.

7

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - short, 1 inch OD tube

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch OD tube

1шт.

9

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-16)

1шт.
