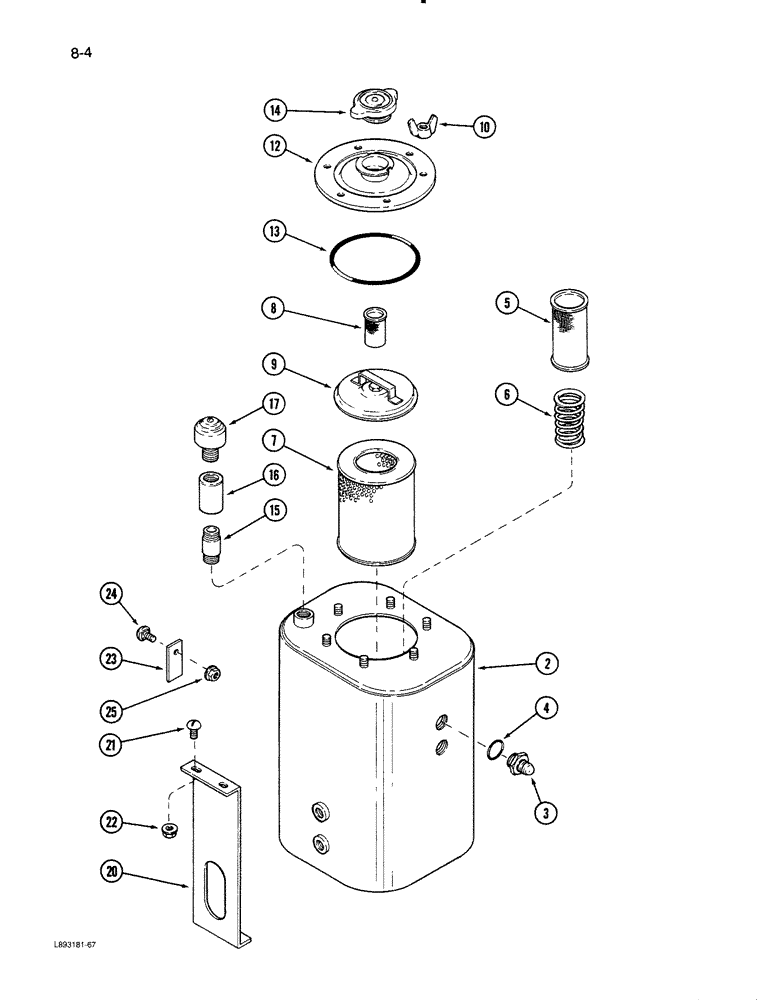

Запчасти Case IH 1670 (8-04) - HYDRAULIC RESERVOIR, LEFT SIDE (07) - HYDRAULICS

1310801C1

TANK

RESERVOIR - hydraulic oil, Left side, Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

TANK - hydraulic reservoir (Order 1310801C1)

1шт.

3

244600R92

SIGHTGLASS

GLASS ASSEMBLY - oil level sight, Includes: Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 inch

1шт.

5

173929C1

STRAINER ELEMENT

STRAINER - reservoir port

1шт.

6

173930C1

SPRING

- port strainer

1шт.

7

528493R3

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - tank filter

1шт.

8

179489C1

FILTER, ENGINE OIL

FILTER SCREEN - tank cover

1шт.

9

173131C1

COVER ASSY

COVER ASSEMBLY - filter

1шт.

10

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

6шт.

12

1301115C1

COVER ASSY

COVER - reservoir tank

1шт.

13

3042933R1

O-RING,-437, 70 Duro, 5.975" ID x .275" Thk

- 6-1/4 x 6-3/4 x 1/4 inch

1шт.

14

361705R91

COVER

CAP - reservoir cover

1шт.

15

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE - 3/4 x 2-1/2 inch

1шт.

16

111661

COUPLING,3/4" NPT

- breather extension, 3/4 inch PT

1шт.

17

923745C91

BREATHER ASSY.

BREATHER ASSEMBLY - reservoir

1шт.

20

193291C1

SUPPORT

- hydraulic reservoir

2шт.

21

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

23

159752C1

SUPPORT

- hydraulic reservoir clamp

1шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.
