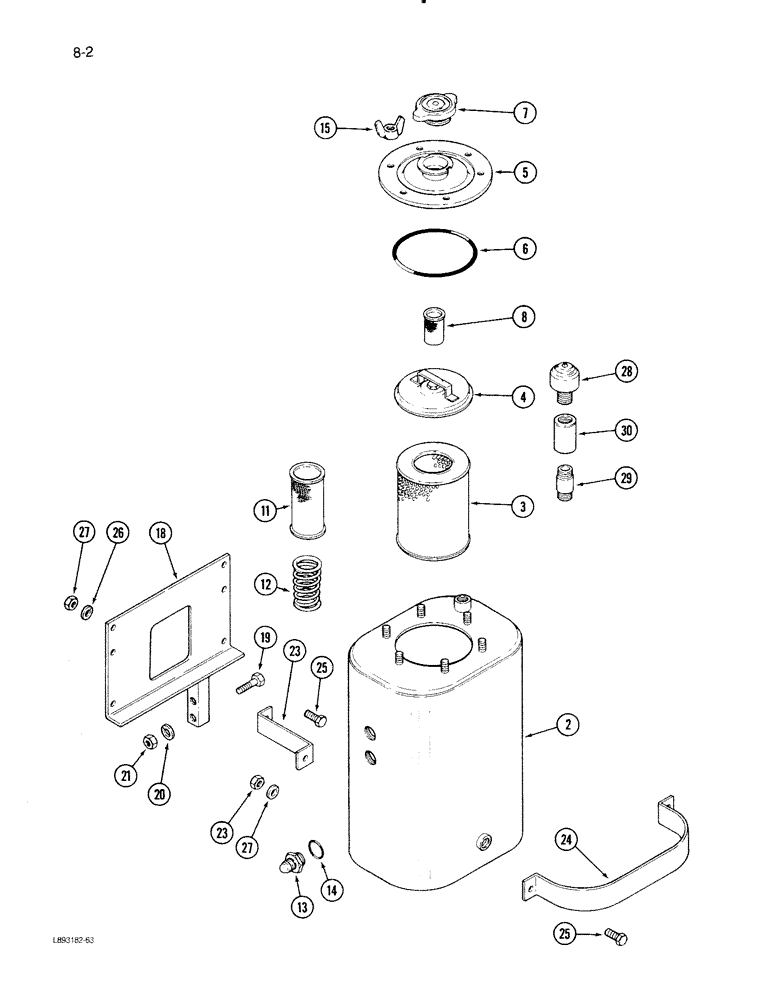

Запчасти Case IH 1670 (8-02) - HYDRAULIC RESERVOIR, RIGHT SIDE (07) - HYDRAULICS

196824C91

TANK

RESERVOIR - hydraulic oil, right side, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

TANK - hydraulic reservoir (Order 196824C91)

1шт.

3

528493R3

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - tank filter

1шт.

4

173131C1

COVER ASSY

COVER ASSEMBLY - filter

1шт.

5

179491C1

COVER

- hydraulic reservoir

1шт.

6

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

- reservoir cover

1шт.

7

361705R91

COVER

CAP - reservoir cover

1шт.

8

179489C1

FILTER, ENGINE OIL

FILTER SCREEN - tank cover

1шт.

11

173929C1

STRAINER ELEMENT

STRAINER - reservoir port

1шт.

12

173930C1

SPRING

- port strainer

1шт.

13

244600R92

SIGHTGLASS

GLASS ASSEMBLY - oil level sight, Includes: Ref. 14

2шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 inch

1шт.

15

126177

WING NUT

NUT - wing, 1/4 inch NC

6шт.

18

1304189C1

SUPPORT

- reservoir tank

1шт.

19

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

23

180153C1

STRAP

BRACE - support

2шт.

24

180154C1

STRAP

BRACE - support

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

- hex, 5/16 inch NC

6шт.

28

923745C91

BREATHER ASSY.

BREATHER ASSEMBLY - reservoir

1шт.

29

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE - 3/4 x 2-1/2 inch

1шт.

30

111661

COUPLING,3/4" NPT

- breather extension, 3/4 inch PT

1шт.
