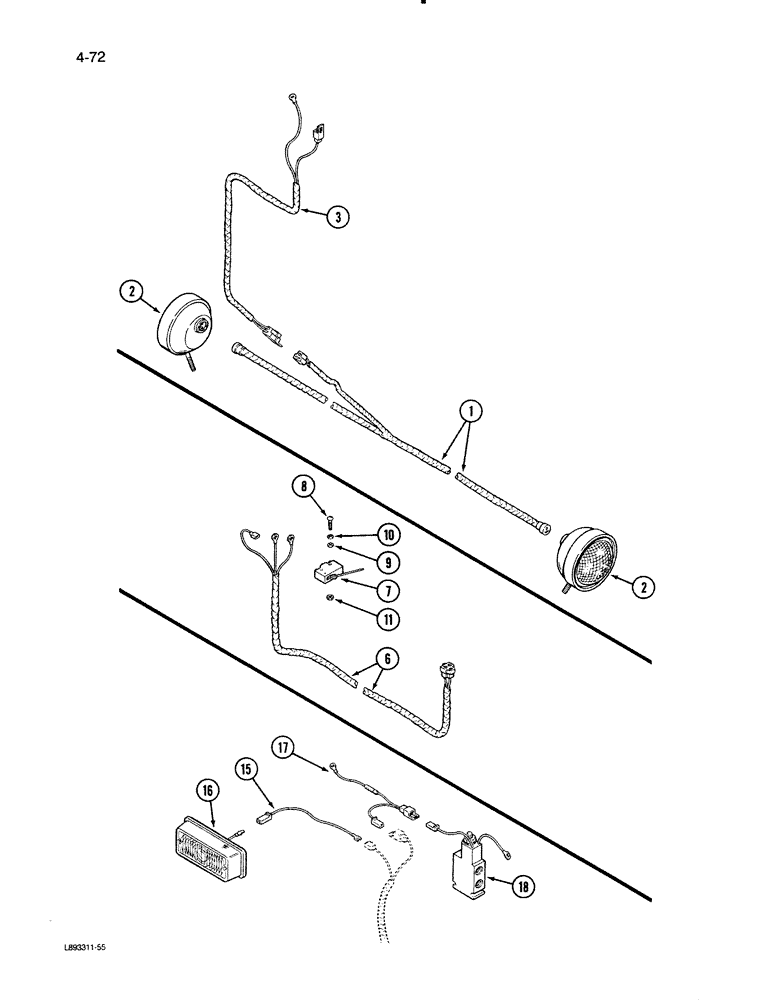

Запчасти Case IH 1670 (4-72) - FEEDER LIGHT HARNESS (06) - ELECTRICAL

1

1304980C2

HARNESS

- feeder light, lower

1шт.

2

REF

INSTRUCTION

LIGHT - feeder (See Figure 4-32)

2шт.

3

1304979C2

HARNESS

- feeder light, upper

1шт.

6

1304691C2

HARNESS

- 4 wheel drive control

1шт.

7

1310827C1

SWITCH

ASSEMBLY - third gear lockout, 4 wheel drive harness

1шт.

8

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

- machine, No. 6 x 1-1/4 inch, 4 wheel drive harness

4шт.

9

103337

WASHER,#6

4 wheel drive harness #6

4шт.

10

138526

LOCK WASHER

- internal lock, No. 6, 4 wheel drive harness

4шт.

11

134530

NUT,Hex, #6 - 32

Machine screw, 4WD harness #6-32

4шт.

15

1304981C1

HARNESS

- flasher extension

1шт.

16

REF

INSTRUCTION

LAMP - flasher (See Figure 4-34), flasher extension harness

1шт.

17

1300707C1

KIT

CABLE - feeder solenoid, flasher extension harness

1шт.

18

REF

INSTRUCTION

VALVE - feeder clutch solenoid (See Figure 8-68), flasher extension harness

1шт.
