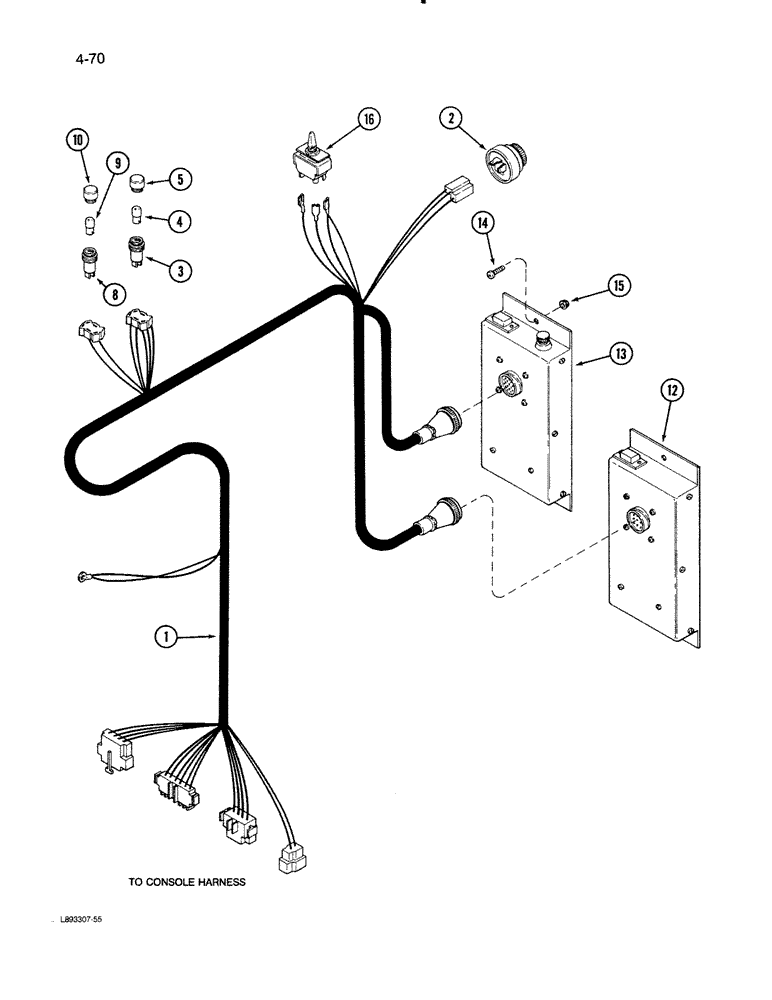

Запчасти Case IH 1670 (4-70) - CONSOLE LEVELING SYSTEM (06) - ELECTRICAL

1

1304786C2

HARNESS

- console leveling

1шт.

2

1265644C1

BUZZER

- 4 wheel drive

1шт.

3

121684C91

LIGHT ASSY.

LAMP - 4 wheel drive indicator, Includes: Ref. 4 and 5

1шт.

4

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

5

71892C1

LENS

- lamp

1шт.

8

109369C91

LIGHT ASSY.

LAMP - maximum level indicator, Includes: Ref. 9 and 10

1шт.

9

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

10

71652C1

LENS

- lamp

1шт.

12

1310875C2

CONTROL

MODULE - leveling system

1шт.

13

1310701C3

CONTROL

MODULE - 4 wheel drive shift

1шт.

14

160556

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

4шт.

15

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

4шт.

16

1304063C1

SWITCH

- feeder clutch

1шт.
