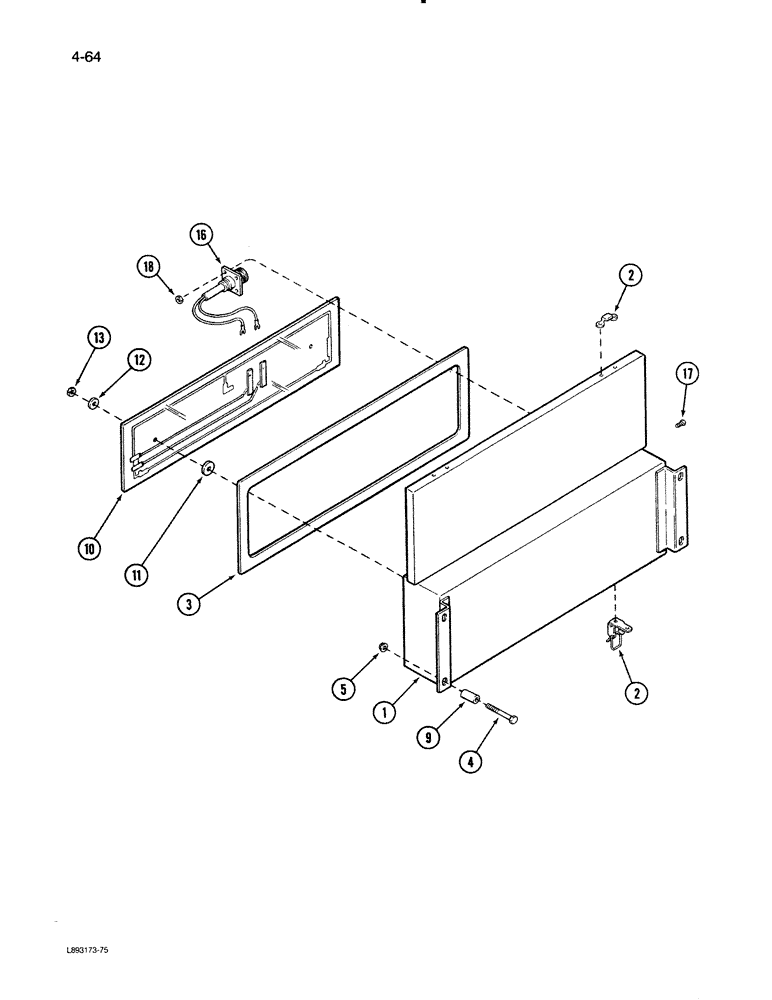

Запчасти Case IH 1670 (4-64) - FORE AND AFT TILT CONTROL BOX (06) - ELECTRICAL

1

1304228C92

BOX

- tilt control, Includes: Ref. 2 and 3

1шт.

2

1304645C1

LATCH

- control box

2шт.

3

1304249C1

SEAL

- control box

1шт.

4

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

9

U13039

SPACER

- pipe, 1/4 x 1 inch

4шт.

10

1304688C1

SWITCH

- mercury

1шт.

11

611352R1

WASHER

- rubber, 5/16 x 7/8 x 5/32 inch

2шт.

12

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

2шт.

13

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

2шт.

16

1304687C1

HARNESS

- fore and aft tilt

1шт.

17

132705

GEARBOX

- round head, No.6-32 x 1/2 inch

4шт.

18

107361H

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6-32

4шт.
