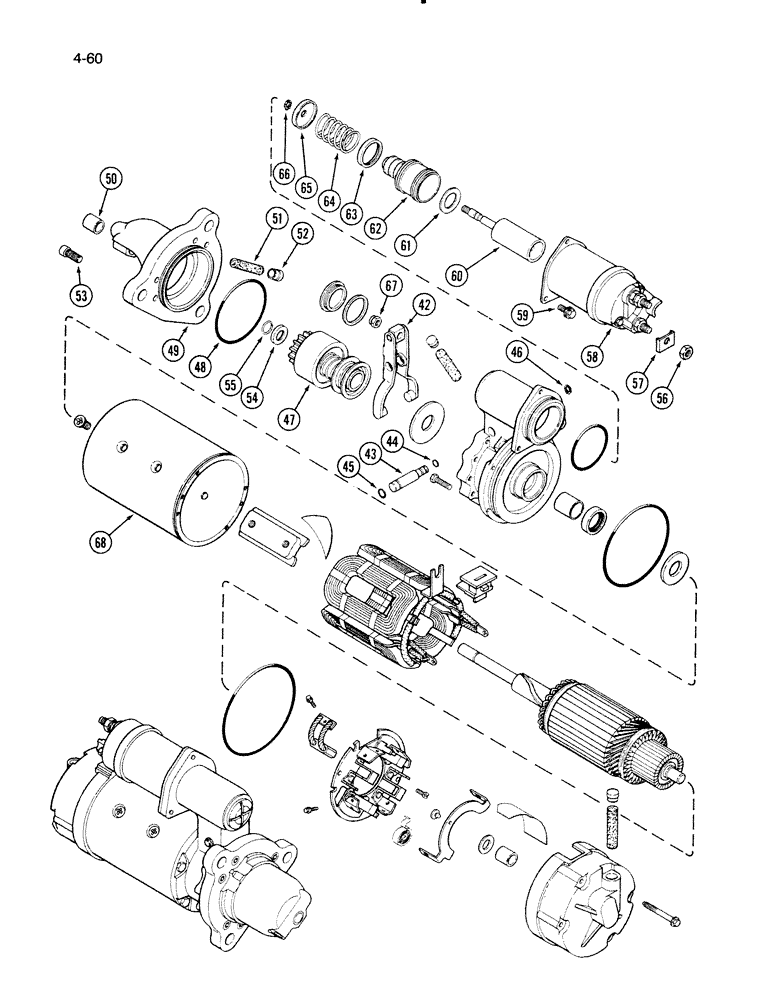

Запчасти Case IH 1670 (4-60) - STARTER, HEAVY DUTY SEALED, (CONT) (06) - ELECTRICAL

REF

INSTRUCTION

STARTER ASSEMBLY - engine, stamped 1993791, continued, Includes: Ref. 42 - 68 and 8 - 41 on Figure 4-58

1шт.

REF

INSTRUCTION

STARTER ASSEMBLY - engine, stamped 1990321, continued, Includes: Ref. 42 - 68 and 8 - 41 on Figure 4-58

1шт.

42

A49583

LEVER

ASSEMBLY - shift

1шт.

43

A42199

PIN

SHAFT - shift lever

1шт.

44

1894642

RING

O-RING - shift lever shaft, 3/8 inch OD

1шт.

45

1894643

O-RING

- shift lever shaft, 1/2 inch OD

1шт.

46

G46146

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

47

A49754

DRIVE

MOTOR - drive

1шт.

Has 12 Teeth

1шт.

48

A43854

O-RING,3.237" ID x 0.106" THK

- starter

1шт.

49

1986351

HOUSING

- drive end, Includes: Ref. 50 - 52

1шт.

50

A40868

BUSHING

1шт.

51

A49567

WICK

- oil reservoir

1шт.

52

A49573

PLUG

CUP - oil reservoir

1шт.

53

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

54

A49585

STOP

- pinion

1шт.

55

A49586

CLIP,ELECTRICAL

RING - retaining

1шт.

56

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Field coil connect to switch 3/8"-16, G5

1шт.

57

1987678

CLIP

- field coil, Serial Range: connect-switch

1шт.

58

1115612

SOLENOID SWITCH

- starter (Use with 1993791), Includes: Ref. 59 - 68

1шт.

58

1115589

SOLENOID SWITCH

- starter (Use with 245153C92), Includes: Ref. 59 - 68

1шт.

59

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW AND WASHER - solenoid mounting

3шт.

60

A49757

PLUNGER

- solenoid

1шт.

61

A41922

WASHER

- plunger assembly

1шт.

62

A49589

BOOT

- plunger

1шт.

63

A43380

BACK-UP RING

RETAINER - plunger spring

1шт.

64

1948521

SPRING

- plunger

1шт.

65

A43419

SEAT

RETAINER - plunger spring

1шт.

66

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger assembly #37, Ext

1шт.

67

131-489

LOCK NUT,5/16"-24, G8

NUT - plunger rod guide adjusting

1шт.

68

NSS

NOT SOLD SEPARAT

HOUSING - field coil (Order 1990321)

1шт.

30887R1

12 PT SCREW,M16 x 40mm, Cl 12.9

BOLT - hex, M16 x 40 mm

3шт.

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3шт.

492-11038

LOCK WASHER,3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.
