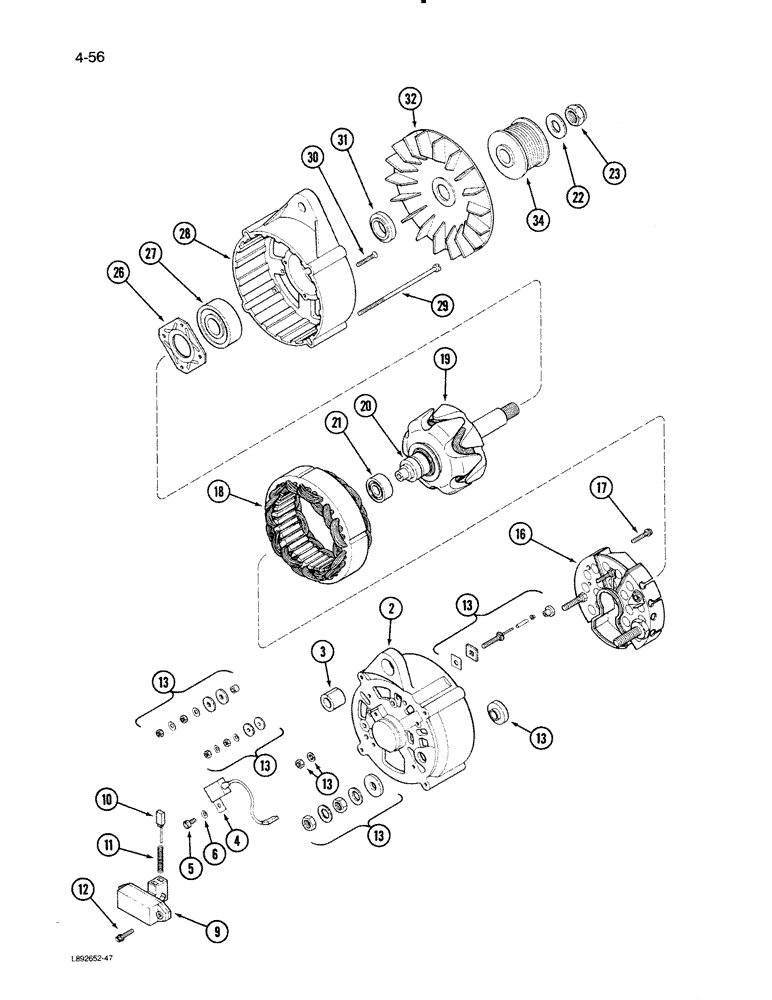

Запчасти Case IH 1670 (4-56) - ALTERNATOR (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
91448C1
ALTERNATOR
ALTERNATOR ASSEMBLY - engine, 110 ampere, Includes: Ref. 1 - 32
1шт.
91448C2R
REMAN-ALTERNATOR
Reman for New PN 91448C1
1шт.
91448C2C
CORE-ALTERNATOR
Return number
1шт.
125849A1R
REMAN-ALTERNATOR
Remanufactured ALTERNATOR, 12 volt 135 ampere
1шт.
125849A1C
CORE-ALTERNATOR
Return Number
1шт.
87297294
REMAN-ALTERNATOR
Reman for New PN 91448C1
1шт.
87297295
CORE-ALTERNATOR
Return number
1шт.
1
1964731C1
HOUSING
HOUSING - collector ring end
1шт.
3
1964737C1
BUSHING,13.5mm ID x 20mm OD x 20mm L
BUSHING - expansion
1шт.
5
684857C1
SCREW
SCREW - fillister head, capacitor retaining
1шт.
6
A186196
WASHER
WASHER - retaining screw
1шт.
9
1964733C1
REGULATOR
REGULATOR ASSEMBLY - voltage, Includes: Ref. 10 and 11
1шт.
10
3079394R91
BRUSH SET
BRUSH SET - alternator
1шт.
11
1964734C1
SPRING
SPRING - compression
2шт.
12
A186194
SCREW,M4 x 18mm
SCREW, , Regulator retaining Sltd Truss Hd, M4 x 18, w/LW
2шт.
13
1964738C1
REPAIR KIT
KIT, REPAIR, Terminal hardware
1шт.
17
A187504
SCREW
BOLT - rectifier bridge retaining
2шт.
18
1964735C1
STATOR
STATOR ASSEMBLY - alternator
1шт.
19
1964728C1
ROTOR
ROTOR ASSEMBLY - alternator
1шт.
20
3079410R1
RING
RING - collector
1шт.
21
1964730C1
BALL BEARING,12mm ID x 32mm OD x 14mm W
BEARING - ball
1шт.
22
195-107
WASHER,9/16"
WASHER - rotor retaining
1шт.
23
131-56
LOCK NUT,5/8"-18, GB
NUT - lock, rotor retaining
1шт.
26
1964727C1
PLATE
PLATE - bearing retaining
1шт.
27
1964726C1
BALL BEARING,22.2mm ID x 56mm OD x 21mm W
BEARING - ball, drive end
1шт.
28
1964725C1
HOUSING
HOUSING - drive end
1шт.
29
1964748C1
SCREW
BOLT - alternator retaining
4шт.
30
1964750C1
SCREW
SCREW - flat head, retaining
4шт.
31
1964729C1
SPACER
SPACER - ring
1шт.
32
1964736C1
FAN
FAN - alternator
1шт.
34
J902099
PULLEY
PULLEY - drive
1шт.
Выбрано товаров: 33
