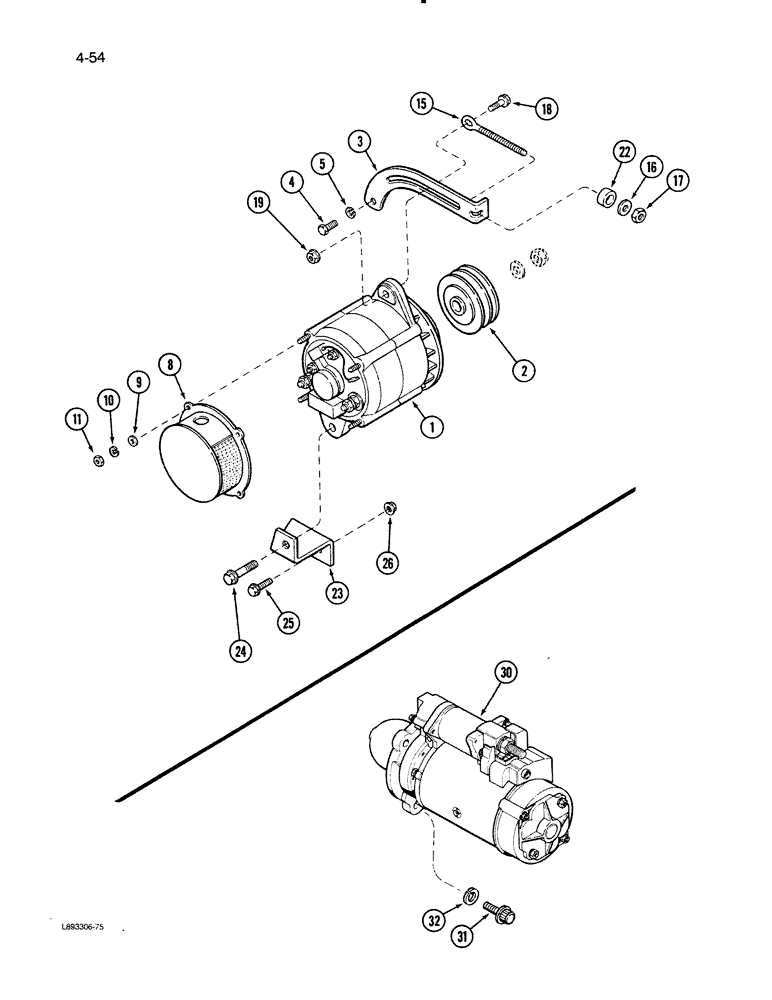

Запчасти Case IH 1670 (4-54) - ALTERNATOR MOUNTING (06) - ELECTRICAL

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-56)

1шт.

2

1977060C2

PULLEY

- drive, alternator

1шт.

3

1979235C1

SUPPORT ASSY.

BRACE - alternator

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

8

1979062C2

COVER ASSY

SHIELD - alternator dust cover

1шт.

9

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 1/16 inch

4шт.

10

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

11

825-1405

NUT,M5, Cl 8

- hex, 5 mm, Grade 10

4шт.

15

1979226C1

BOLT (SPREADER)

EYEBOLT - alternator belt adjusting

1шт.

16

390305C1

WASHER

- flat 13/32 x 13/16 x 1/16 inch

1шт.

17

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

18

121-426

BOLT,Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

19

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

22

1982256C1

SPACER

- pulley

1шт.

23

1977053C1

SUPPORT ASSY.

SUPPORT - alternator rear

1шт.

24

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

1шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, Grade 8

1шт.

26

21333R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

1шт.

30

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-58), mounting

1шт.

31

31242R1

12 PT SCREW,M12 x 35mm, Cl 12.9

BOLT - 12 point flange head, 12 x 35 mm, starter mounting

3шт.

32

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Starter Mounting M12

3шт.
