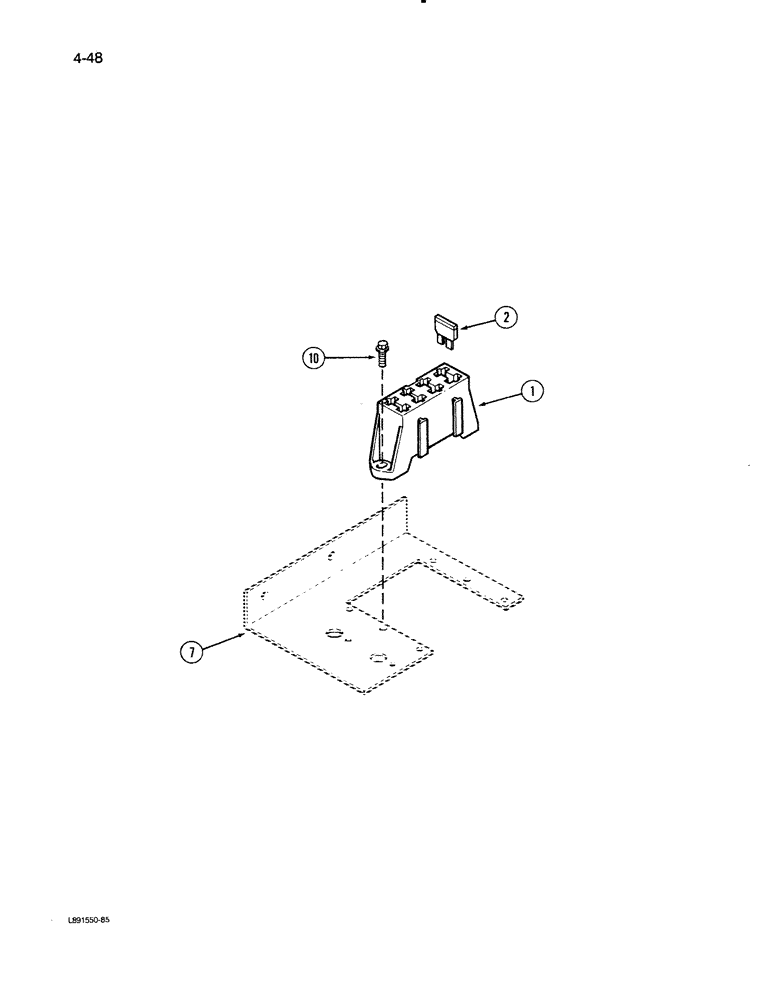

Запчасти Case IH 1670 (4-48) - FUSE AND FUSE BLOCK (06) - ELECTRICAL

1

NSS

NOT SOLD SEPARAT

BLOCK - fuse (See Figure 4-6)

3шт.

2

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

2шт.

2

A149800

FUSE,10 Amp

- 10 ampere (Red)

5шт.

2

A149799

FUSE

- 7.5 ampere (Brown)

3шт.

2

A149804

FUSE

- 30 ampere (Light green)

1шт.

2

A149798

FUSE

- 5 ampere (Tan)

2шт.

2

A149796

FUSE

- 3 ampere (Violet)

2шт.

7

1280162C3

SUPPORT

- fuse block

1шт.

8

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 x 1/2 inch

2шт.

9

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged lock, 1/4 inch NC

2шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - tapping, 1/4 x 1/2 inch

2шт.
