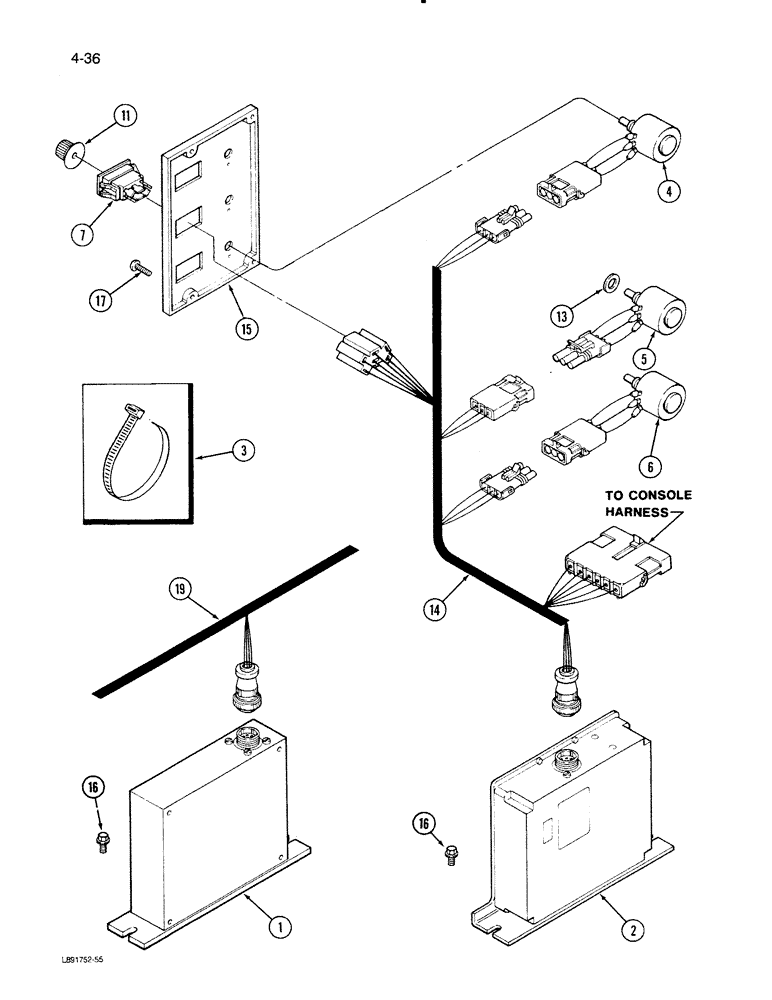

Запчасти Case IH 1670 (4-36) - AUTOMATIC FEEDER CUT-OFF AND AUTOMATIC REEL SPEED, TO GROUND SPEED CONTROLS (06) - ELECTRICAL

1

1983214C1

CONTROL BLOCK

CONTROL ASSEMBLY - automatic feeder cutoff

1шт.

2

1983212C1

CONTROL BLOCK

CONTROL ASSEMBLY - automatic reel speed to ground speed

1шт.

3

702093C1

CABLE TIE

STRAP - tie

1шт.

4

245637C1

POTENTIOMETER,2500 Ohm

Reel to Ground Speed Ratio 2500 Ohm

1шт.

5

245925C1

POTENTIOMETER,1000 Ohm

Speed Setting 1000 Ohm

1шт.

6

245638C1

POTENTIOMETER,200,000 Ohm

Calibration 200,000 Ohm

1шт.

7

245697C1

SWITCH

- automatic manual, rocker

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

2шт.

11

1301036C1

BUTTON

KNOB - reel to ground speed control

1шт.

13

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

14

245923C1

HARNESS

ASSEMBLY - reel to ground speed

1шт.

15

REF

INSTRUCTION

PANEL - front control (See Figure 9G-2)

1шт.

16

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch

2шт.

17

27204R1

SELF-TAP SCREW

- oval cross head, No. 10-16 x 3/4 inch

1шт.

19

REF

INSTRUCTION

HARNESS - console (See Figure 4-6)

1шт.
