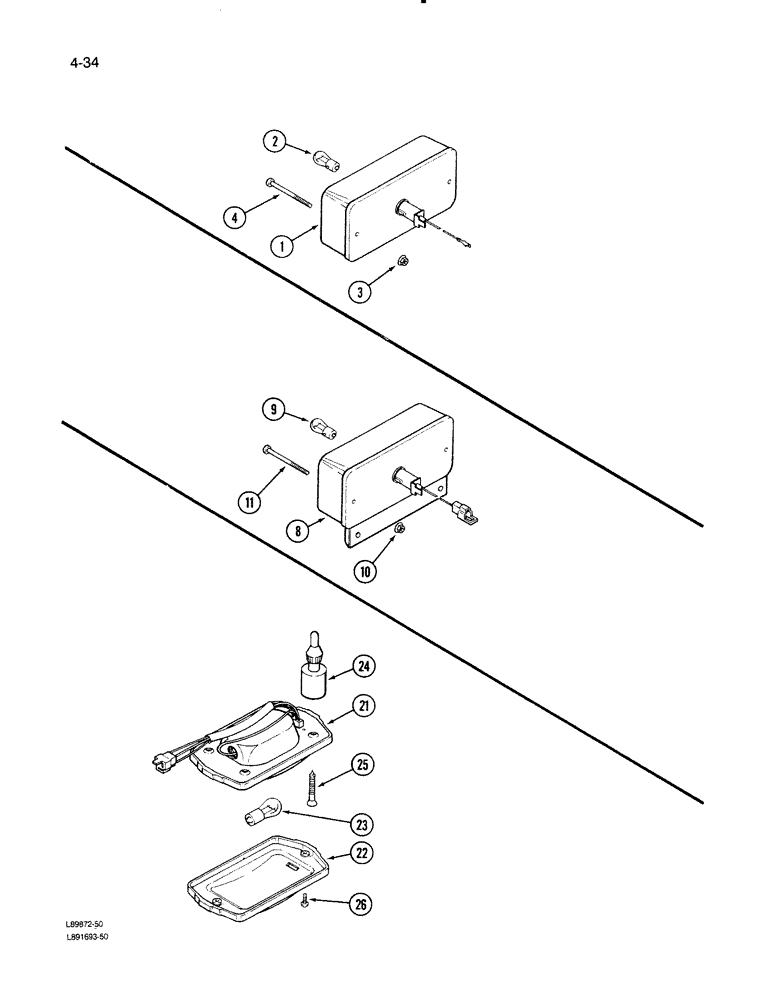

Запчасти Case IH 1670 (4-34) - WARNING LIGHT - FRONT AND REAR (06) - ELECTRICAL

130882C91

LAMP

LIGHT ASSEMBLY - warning, Includes: Ref. 1 - 4

4шт.

1

130883C1

LENS

- amber

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

3

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC

2шт.

4

26618R1

SCREW

- pan head machine, No. 10-24 NC x 1-1/2 inch

2шт.

216044C92

LAMP

LIGHT ASSEMBLY - stop and tail light, Includes: Ref. 8 - 11

2шт.

8

216045C1

LENS

- red

1шт.

9

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157

1шт.

10

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC

2шт.

11

26618R1

SCREW

- pan head machine, No. 10-24 NC x 2-1/2 inch

2шт.

21

245659C91

LAMP

LIGHT ASSEMBLY - dome, Includes: Ref. 22 - 24

1шт.

22

245679C1

LENS

- dome light

1шт.

23

142457

BULB,C6, #1142, 12.8V

LAMP - type C-6, No. 1142, dome light

1шт.

117995C1

PACKAGE

FASTENER KIT - dome light (Package of 5), Includes: Ref. 24, 25 and 26

1шт.

24

NSS

NOT SOLD SEPARAT

FASTENER - dome light (Order 117995C1)

4шт.

25

27071R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 1/2"

SCREW - tapping, No. 8-18 x 1-1/2 inch, dome light

4шт.

26

NSS

NOT SOLD SEPARAT

SCREW - lens mounting (Order 245659C91), dome light

2шт.
