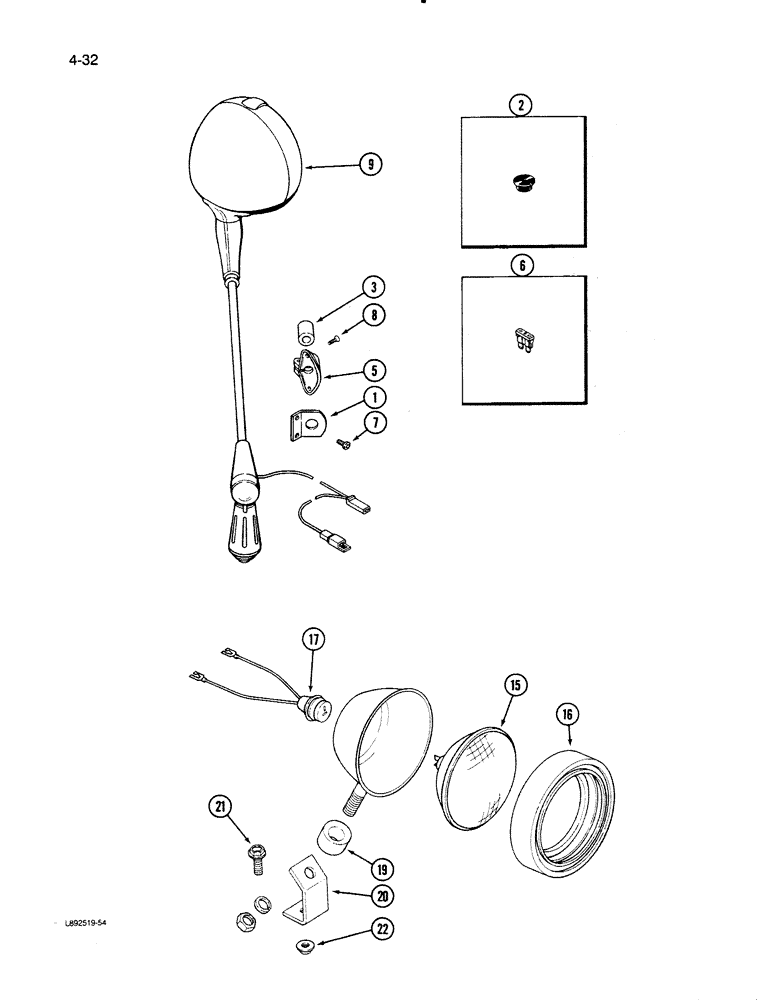

Запчасти Case IH 1670 (4-32) - CAB SPOTLIGHT (06) - ELECTRICAL

1323590C91

LAMP BASE

LIGHT ATTACHMENT - spotlight, Includes: Ref. 1 - 9

1шт.

1

1329859C1

BRACKET

- spotlight

2шт.

2

1330144C1

GROMMET

1шт.

3

1330145C1

BUSHING

1шт.

4

91938C1

INTERIOR LIGHT

SPOTLIGHT

1шт.

5

92015C1

BRACKET

- spotlight

1шт.

6

A149798

FUSE

- 5 ampere

1шт.

6

A149799

FUSE

- 7.5 ampere

1шт.

7

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - tapping, No. 10 x 3/8 inch

2шт.

8

27073R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - tapping, No. 10 x 1/2 inch

2шт.

9

28753R1

LIGHT

LAMP - seal beam, No. 7604

1шт.

391005R91

HEADLIGHT

LIGHT - feeder, Includes: Ref. 15 - 17

2шт.

15

373662R91

LAMP

BULB - light, No. 4411 (Alternate with 131508C1), feeder

1шт.

15

131508C1

LAMP BASE

BULB - light, No. H7610 (Alternate with 373662R91), feeder

1шт.

16

A25213

RETAINER

- shockproof (Use with Hobbs light), feeder light

1шт.

16

1252609C1

RETAINER

- shockproof (Use with Mid-West light), feeder light

1шт.

17

530029R91

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - light (Use with Hobbs light), feeder

1шт.

19

1267358C2

SEAT

- light mounting, feeder

2шт.

20

561915R1

BRACKET

- light mounting, feeder

2шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch, feeder light

2шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC, feeder light

2шт.
