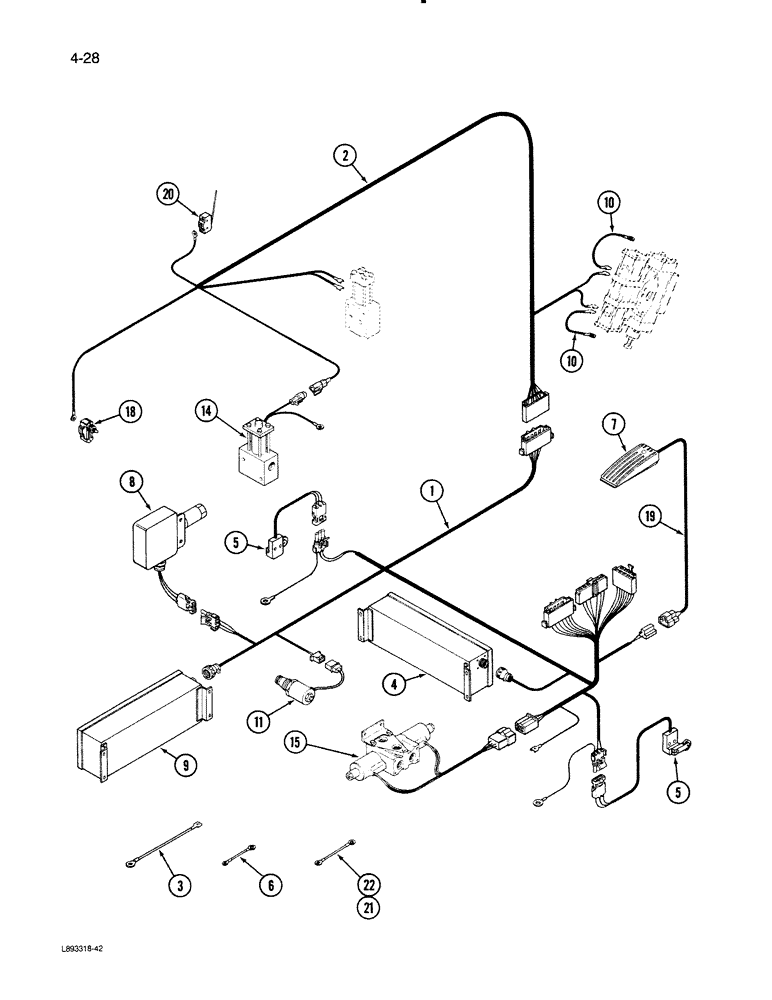

Запчасти Case IH 1670 (4-28) - 4 WHEEL DRIVE AND LEVELING SYSTEM (06) - ELECTRICAL

1

1265669C1

HARNESS

- 4 wheel drive and leveling

1шт.

2

1265670C1

HARNESS

- 4 wheel drive and leveling

1шт.

3

1304695C1

CABLE

- high speed leveling

3шт.

4

REF

INSTRUCTION

BOX - leveling control (See Figure 4-66)

1шт.

5

1265622C2

SWITCH

- leveling limit

2шт.

1265634C1

ARM

- leveling switch

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

2шт.

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

2шт.

6

631760R91

ELECTRICAL WIRE

CABLE - leveling limit ground

2шт.

7

1304684C1

SWITCH

- 4 wheel drive foot

1шт.

1304698C1

BAR

SUPPORT - switch

1шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- round head slotted, No. 10 x 3/8 inch

2шт.

8

1265668C91

SWITCH

- front motor pressure, Includes switch and connector

1шт.

1304239C1

SWITCH

- motor pressure

1шт.

1304644C1

CONNECTOR, ELEC

CONNECTOR - switch

1шт.

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

2шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

2шт.

9

REF

INSTRUCTION

BOX - fore and aft tilt switch (See Figure 4-64)

1шт.

10

1304693C1

CABLE

- header drive valve

2шт.

11

145338C1

SWITCH

SOLENOID - control valve

1шт.

14

REF

INSTRUCTION

VALVE - leveling bypass (See Figure 8-84)

1шт.

15

REF

INSTRUCTION

VALVE - leveling system (See Figure 8-88)

1шт.

18

186057C1

SWITCH

- 4 wheel drive valve

1шт.

1310689C1

SWITCH

SUPPORT - switch

1шт.

19

1304650C1

HARNESS

- 4 wheel drive foot switch

1шт.

20

1310827C1

SWITCH

ASSEMBLY - reverse lockout

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

- machine, No. 6 x 1-1/4 inch

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

138526

LOCK WASHER

- internal lock, No. 6

2шт.

103337

WASHER,#6

2шт.

21

631760R91

ELECTRICAL WIRE

CABLE - leveling limit ground

1шт.

22

138842C1

CABLE

- reel speed solenoid ground

1шт.
