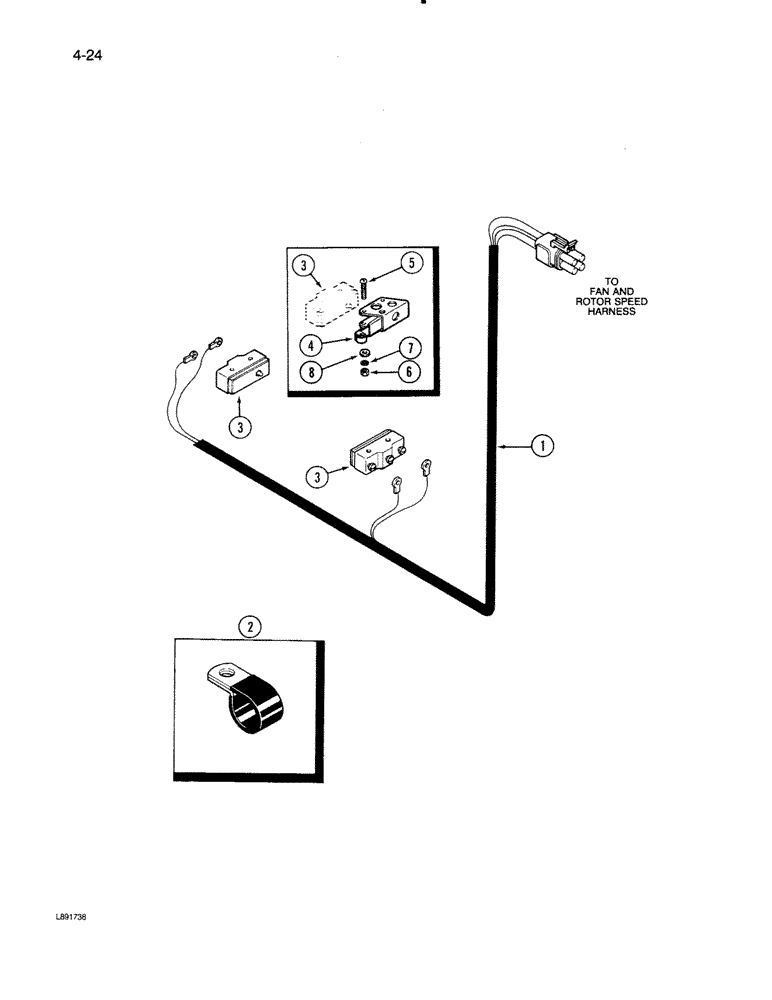

Запчасти Case IH 1670 (4-24) - ROTOR LIMIT SWITCH HARNESS (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

HARNESS ASSEMBLY - rotor limit switch

1шт.

2

84183C1

CLAMP

CLIP - harness

3шт.

3

186057C1

SWITCH

- rotor limit

2шт.

4

186058C1

IGNITION SWITCH

ACTUATOR - rotor limit switch

2шт.

5

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

- machine, No. 6 x 1-1/4 inch

4шт.

6

134530

NUT,Hex, #6 - 32

Machine screw #6-32

4шт.

7

138526

LOCK WASHER

- internal lock, No. 6

4шт.

8

103337

WASHER,#6

4шт.
