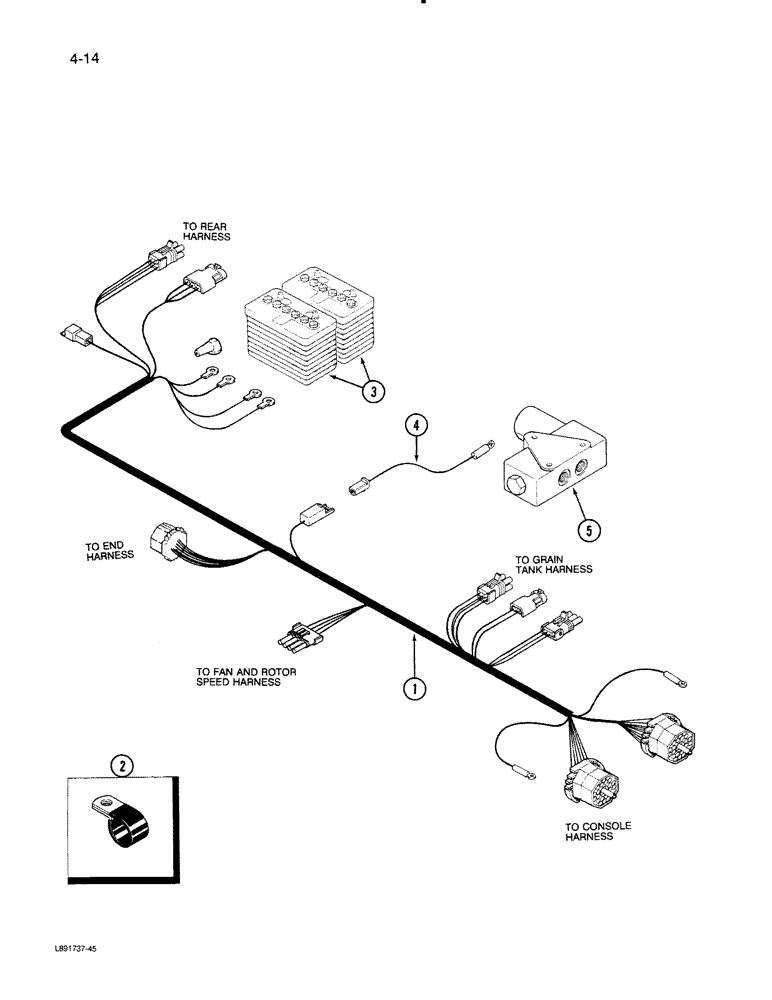

Запчасти Case IH 1670 (4-14) - CENTER HARNESS (06) - ELECTRICAL

1

1983382C1

HARNESS

- center

1шт.

2

84183C1

CLAMP

CLIP - center harness

10шт.

3

REF

INSTRUCTION

BATTERY - 12 volt (See Figure 4-52)

2шт.

4

187736C1

CABLE

- separator clutch valve (control concepts)

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (control concepts) (See Figure 8-70)

1шт.
