(4-10) - CONSOLE BACK LIGHTING HARNESS

Запчасти Case IH 1670 (4-10) - CONSOLE BACK LIGHTING HARNESS (06) - ELECTRICAL

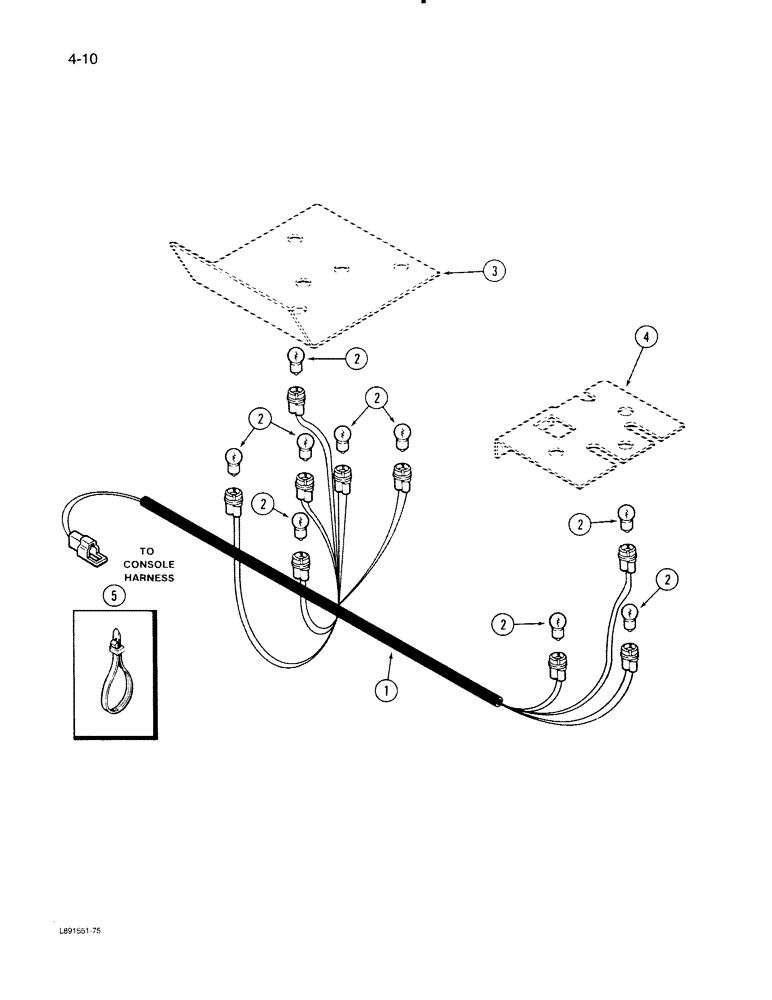

Схема запчастей Case IH 1670 - (4-10) - CONSOLE BACK LIGHTING HARNESS (06) - ELECTRICAL
4
2
2
2
3
2
2
2
5
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245231C1

HARNESS

ASSEMBLY - console backlighting

1шт.

2

A14553

BULB

- lamp, No. 57

9шт.

3

REF

INSTRUCTION

SUPPORT - backlight (See Figure 9H-18)

1шт.

4

REF

INSTRUCTION

SUPPORT - backlight (See Figure 9H-18)

1шт.

5

702093C1

CABLE TIE

STRAP - cable retaining

1шт.
