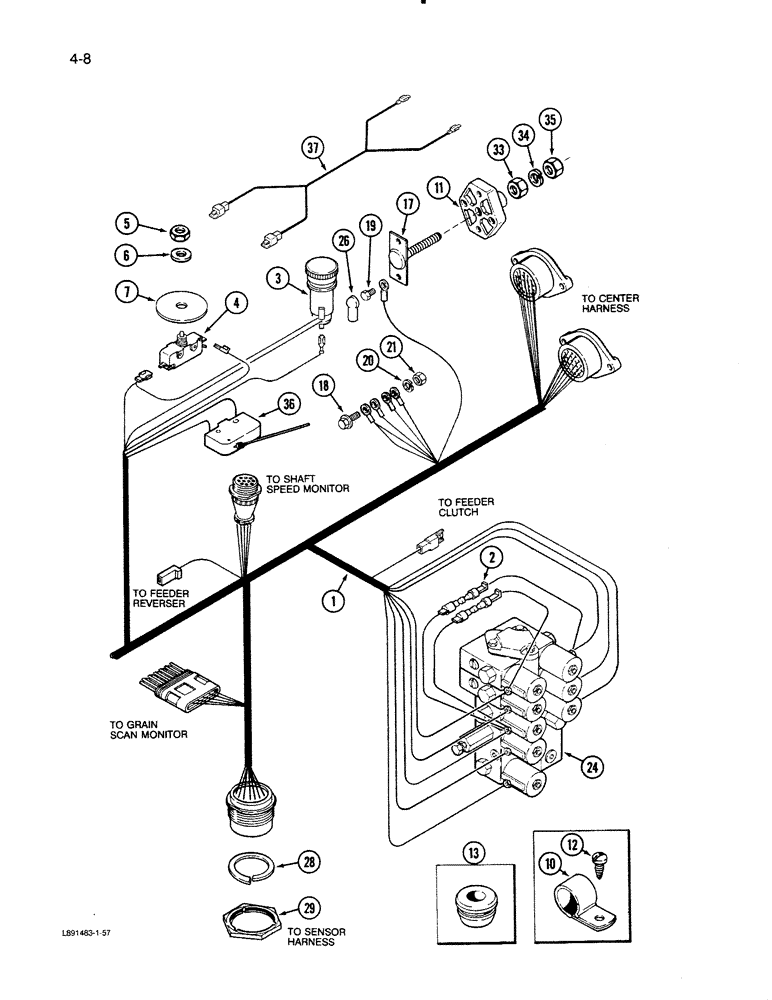

Запчасти Case IH 1670 (4-08) - CONSOLE HARNESS, LEFT SIDE (06) - ELECTRICAL

1

91726C4

HARNESS

- console

1шт.

2

548239R2

RECTIFIER

DIODE ASSEMBLY - console harness

2шт.

3

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigarette

1шт.

3

378781R1

LIGHTER, CIGARETTE

LIGHTER - pop up element, cigarette

1шт.

4

633643R91

SWITCH

ASSEMBLY - parking brake warning light

1шт.

5

68107H

LOCK NUT

- light switch

1шт.

6

166817C1

WASHER

- light switch

1шт.

7

25709R1

WASHER

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - console harness, front

1шт.

11

468647C1

BLOCK ASSY.

BLOCK - junction

1шт.

12

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

BOLT - pan head tapping, 1/4 x 1/2 inch

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, console harness

1шт.

17

1964561C1

BAR

- junction block

1шт.

18

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flanged hex lock, 1/4 NC x 3/4 inch

2шт.

19

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch

2шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-32)

1шт.

26

399470R1

BOOT

- cable

1шт.

28

490691C1

LOCK WASHER,#18 Shell

- lock, harness connector

1шт.

29

490692C1

LOCK NUT,#18 Shell

- hex, harness connector

1шт.

33

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

1310827C1

SWITCH

- third gear lockout

1шт.

37

1979451C1

HARNESS

- brake light

1шт.
