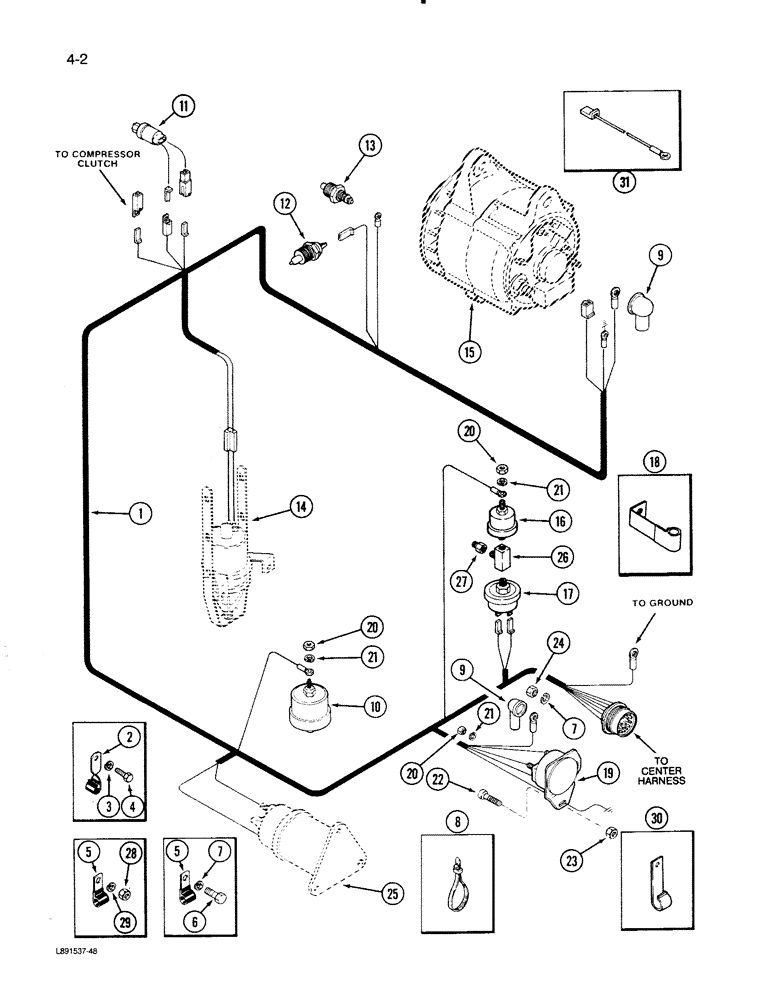

Запчасти Case IH 1670 (4-02) - ENGINE HARNESS (06) - ELECTRICAL

1

1338703C3

HARNESS

- engine

1шт.

2

670368C1

CLIP

- engine block, rear

1шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

5

362123R1

CLIP

- engine harness

3шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

8

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

9

399470R1

BOOT

- cable

2шт.

10

130707C4

TRANSMITTER

SENDER - oil pressure

1шт.

11

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

12

130861C1

SWITCH

- coolant temperature

1шт.

13

121756C2

SENSOR

SENDER - coolant temperature

1шт.

14

REF

INSTRUCTION

SOLENOID - ether injection (See Figure 2-16)

1шт.

15

REF

INSTRUCTION

ALTERNATOR - engine (See Figure 4-56)

1шт.

16

392249R92

SWITCH

- low engine oil pressure light

1шт.

17

131424C1

SWITCH

- pressure header lift

1шт.

18

399657R1

CLIP

- engine harness, front cover

1шт.

19

121613C1

IGNITION SWITCH

RELAY - starter solenoid

1шт.

20

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

22

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flanged, 1/4 NC x 3/4 inch

2шт.

23

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged, 1/4 inch NC

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

REF

INSTRUCTION

SWITCH - starter solenoid (See Figure 4-60)

1шт.

26

9409939

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- pipe, 1/8 inch PT

1шт.

27

443998

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

- pipe, 1/8 inch PT

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

269980R1

CLIP

- engine harness center

1шт.
