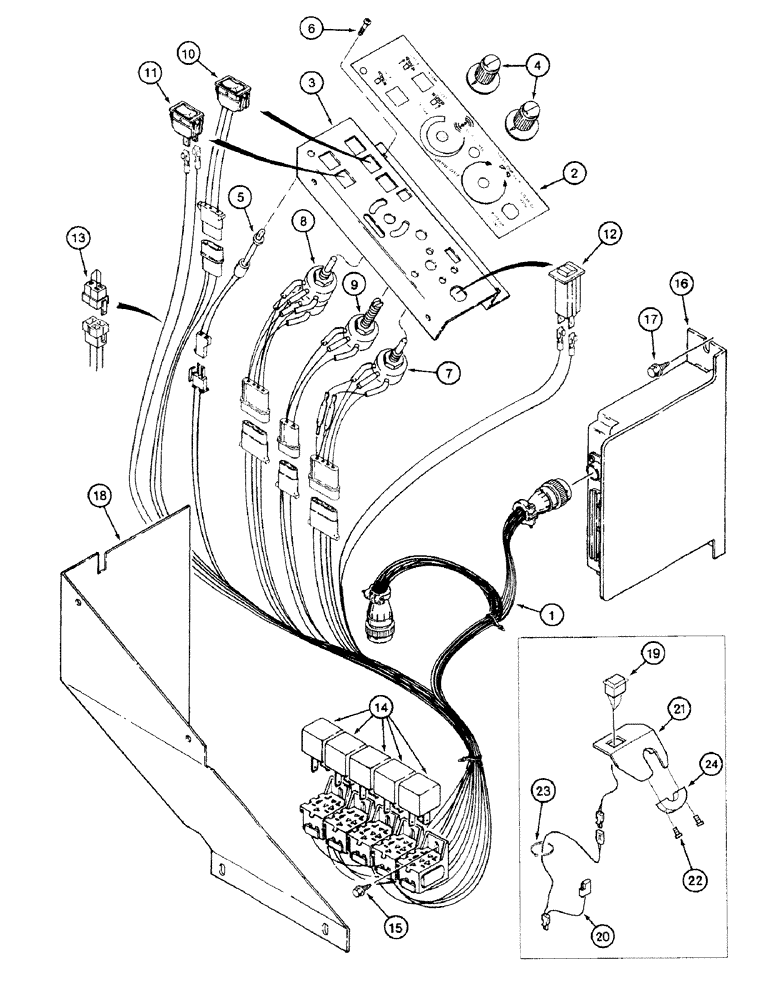

Запчасти Case IH 1680 (04-02) - CONTROL PANEL SWITCHES, FOR 1600 COMBINES (04) - ELECTRICAL SYSTEMS

1

101412A1

HARNESS

1шт.

2

101413A1

DECAL

1шт.

3

101414A1

PANEL

1шт.

4

1301036C1

BUTTON

2шт.

5

101416A1

SIGHTGLASS

1шт.

6

442-10820

SCREW,Cross Oval Hd, #8-32 x 1 1/4"

No. 8 x 1-1/4 in

2шт.

7

101439A1

POTENTIOMETER,2500 Ohm

1шт.

8

101434A1

POTENTIOMETER,10,000 Ohm

1шт.

9

101435A1

POTENTIOMETER,50,000 Ohm

1шт.

10

101418A1

SWITCH

1шт.

11

101417A1

SWITCH

Automatic Tilt

1шт.

12

101419A1

BREAKER

5A

1шт.

13

108650A1

RECTIFIER

1шт.

14

146461C1

RELAY

30A

5шт.

15

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, No. 10 x 1/2 in

2шт.

16

100275A1

CONTROL

1шт.

16

100275A2R

REMAN ELECT CONTROL

1640, 1660, 1680, All COMBINE FIELD TRACKER, Reman for New PN 100275A1

1шт.

16

100275A2C

CORE-ELECTRONIC CONT

Return Number

1шт.

17

281-14710

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 5/8"

SCREW, 1/4 x 5/8 in

2шт.

18

100298A1

SUPPORT

1шт.

19

138862A1

SWITCH

Manual Tilt

1шт.

20

132692A1

HARNESS

Manual tilt

1шт.

21

132691A1

SUPPORT

Inc. Ref 24

1шт.

22

62-32510

HEX SOC SCREW,1/4" - 28 x 3/8"

SCREW, 1/4 x 5/8 in

2шт.

23

702093C1

CABLE TIE

STRAP

1шт.

24

NSS

NOT SOLD SEPARAT

Collar

1шт.
